Hanwha TNO-C3022TRA

Hanwha Article code TNO-C3022TRA

NetcamCenter {{ fullProductName }}

Outdoor Radiometric Thermal Bullet Camera, built-in AI, 6.6mm lens, 60° field of view, 8fps, 384x288 resolution
In stock
Buy now
+ Quote
  • 384x288 resolution
  • 9.7mm lens with 60° angle of view
  • 8fps

Description Hanwha TNO-C3022TRA

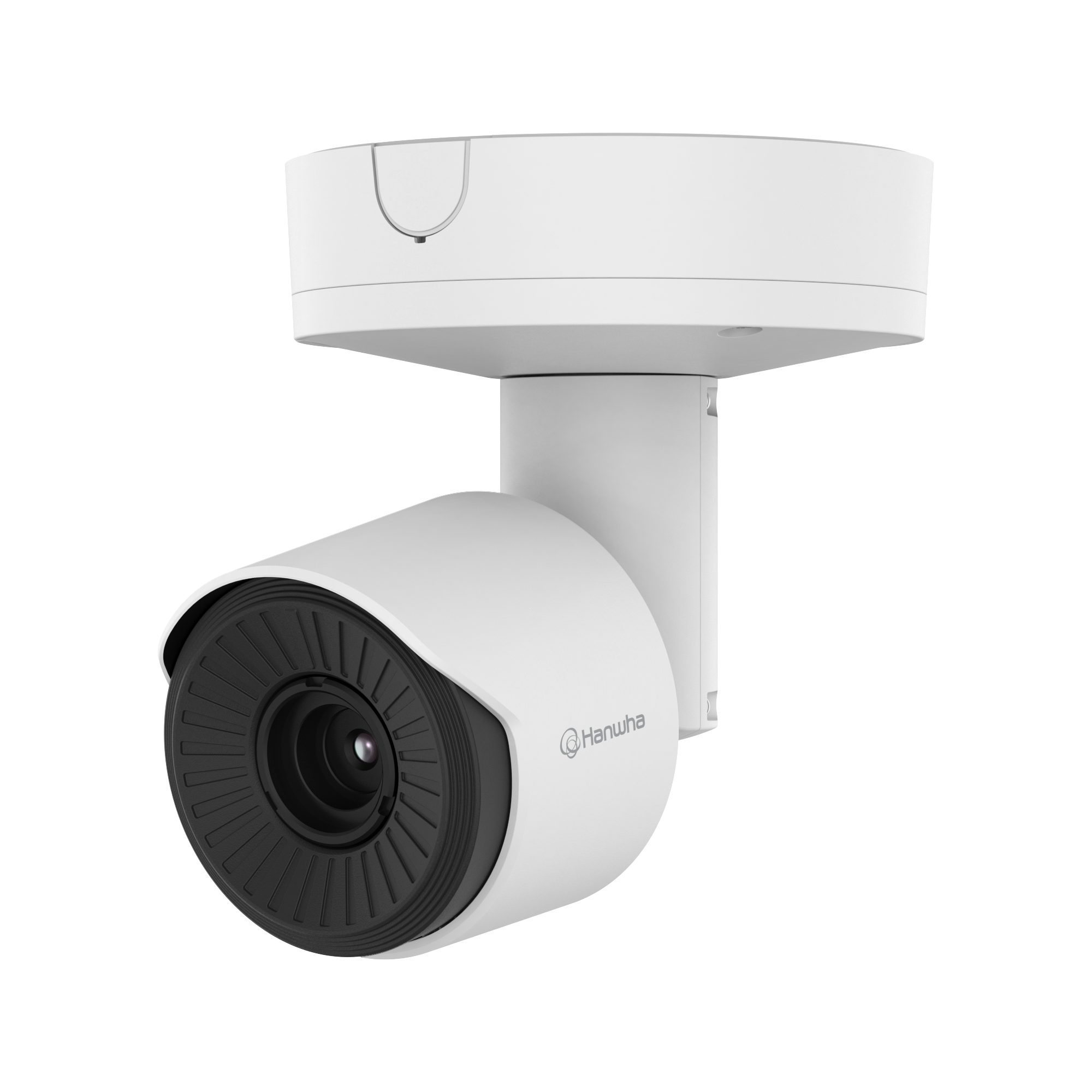

The TNO-C3022TRA is a robust QVGA radiometric thermal bullet camera, for outdoor use, with a framerate of 8 fps, a fixed 6.6mm lens, and a 60° field of view. With a NETD of 30mK, it delivers accurate thermal images. It supports H.265/H.264/MJPEG codecs and IP66, IK10, and NEMA 4X ratings.

AI-enabled thermal cameras improve accuracy and efficiency

T series AI based radiometric thermal camera boasts AI-powered object detection that can accurately classify people and vehicles even under challenging conditions. This capability enables the camera to detect and classify people in extreme situations, such as fog or smoke, effectively preventing accidents.

Wide Temperature Detection Range

Hanwha Vision’s radiometric thermal cameras, with a temperature detection range of -40°C to 550°C, are ideal for diverse industrial applications. Effectively monitoring industrial equipment and materials, they ensure safe operation. By detecting temperature changes due to aging or connection failure, the cameras empower operators to promptly address potential problems, enhancing maintenance efficiency and reducing downtime.

Key features:

  • resolution: 384x288
  • 8fps
  • NETD: <30mK
  • Angle of view: 60°
  • IP66, IK10, Nema 4X
  • Temperature Accuracy: under 150°C: up to ±2°C, above 150°C: up to ±15%

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Video

Specifications

Product
Model number TNO-C3022TRA
GTIN code 8801089226716
Brand Hanwha
Category
IP Cameras
Thermal
HS Code
852589
Weight
1700 grams
Size (lxwxh)
482 x 541 x 233 millimeters
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Local Storage
Resolution
≤ 720p (1MP)
Hanwha Series
Wisenet T
Angle of View
31° - 60°
Encoding
H264
H265
MJPEG
Thermal camera properties
Bullet
8.3 fps
