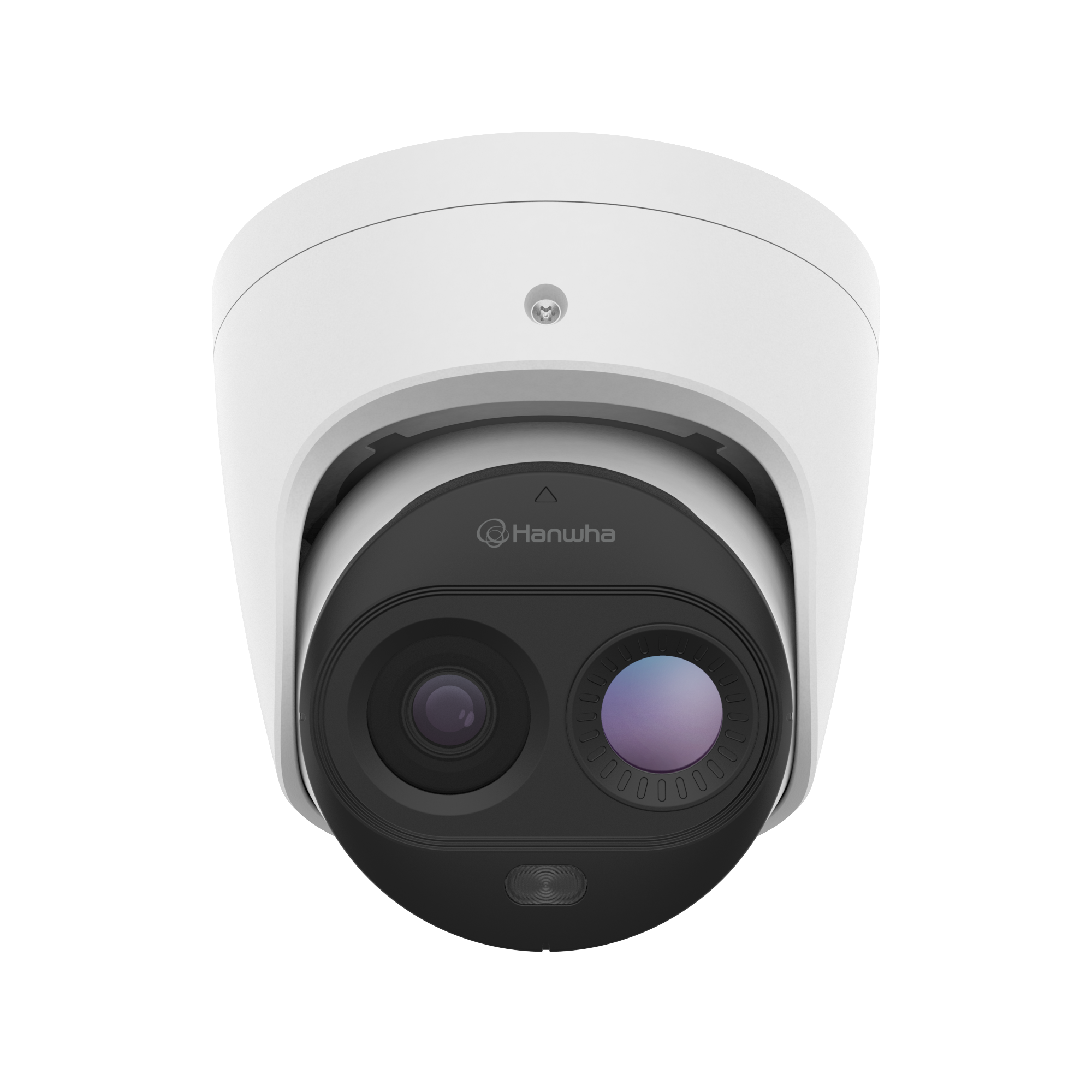

Hanwha TNM-C2722TDR

Early Fire Detection Bi-spectrum Thermal Camera

This dual lens thermal camera is designed for critical environments such as industrial facilities, data centres and electric vehicle charging stations, these cameras help identify potential fire hazards before they escalate, ensuring safety and operational efficiency.

The TNM-C2712TDR and TNM-C2722TDR models utilise advanced video analytics to detect flames through the visible channel, while the thermal sensor detects temperature changes. This dual-layered detection provides critical flame and temperature alerts, allowing users to take swift preventive actions before a fire spreads.

Beyond fire detection, real-time temperature monitoring enables proactive equipment maintenance. With support for up to two regions of interest, users can track minimum, maximum, and average temperature values, enabling precise event rule configurations. Furthermore, the cameras support a broad temperature detection range of -10°C to 450°C, making them suitable for diverse applications. Users can set predefined temperature thresholds, triggering alarms when variations exceed set limits.

Equipped with a QVGA (160×120) thermal detector and wide-angle lenses, 95° for TNM-C2712TDR and 57° for TNM-C2722TDR, these cameras provide optimal coverage for short to medium-range monitoring, up to seven and 15 metres respectively. The ability to capture both visible and thermal images simultaneously ensures comprehensive situational awareness, even in challenging conditions such as complete darkness, fog, or smoke.

Built to withstand demanding conditions, the models feature a durable, compact design suitable for both indoor and outdoor installations. Their robust construction ensures long-term reliability in industrial environments. With cutting-edge fire detection, advanced temperature monitoring, and seamless integration, the bi-spectrum early fire detection cameras deliver enhanced safety and security for critical infrastructure.

Key Features:

• Bi-spectrum Multi-Channel: QQVGA Thermal & 3MP Visible Sensor
• Max. Framerate: Visiable 30fps, Thermal 8fps
• Angular Field of View : Thermal H: 57° / V: 44° / D: 71° & Visible H: 69° / V: 50.8° / D: 88.9°
• Early fire detection (Analytics events based on AI engine)
• Temperature detect range (-10°C~450°C), Temperature difference detection
• IP66/IP67, IK09 (except lenses in front)
• PoE: Max 10.8W, typical 6.2W
