Sony SNC-XM632

Sony Article code SNC-XM632
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

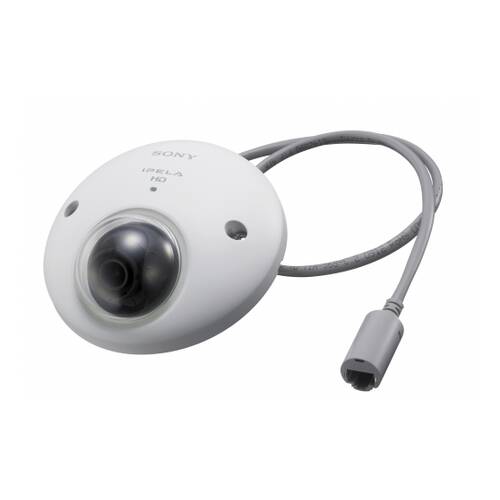

Compact Full HD mini-dome IP camera. Outdoor (IP66), -25C to +50C, ruggedized (IK10), PoE. 113 degree view angle. ISO 16750 compliant for transport applications.

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description Sony SNC-XM632

Compact Full HD mini-dome IP camera. Outdoor (IP66), -25C to +50C, ruggedized (IK10), PoE. 113 degree view angle. ISO 16750 compliant for transport applications. RJ45 connector, ONVIF Profile S compliant, 3 years Advanced Exchange included.
Note: the supplied mounting box is not waterproof.

The rugged SNC-XM632 minidome IP camera is suited to a wide range of security and surveillance environments indoors and outside from retail and mall entrances to bank ATMs, educational campuses or car park exits.

Further broadening its versatility, the camera is engineered to cope with the specific demands of video monitoring inside road vehicles such as buses, where its compact form and flat finish help it blend neatly into its surroundings.

Full HD picture quality is assured by the sensitive, high-resolution Exmor CMOS sensor thats teamed with Sonys latest-generation IPELA ENGINE EX signal processing system. Every scene looks clearer, sharper and more detailed even in challenging low-light conditions or with harsh backlighting. Extra intelligence is added by DEPA Advanced Intelligent Video Analytics that can intelligently trigger an alarm based on user-defined rules.

Full HD pictures from the wide-angle lens are fine-tuned by Sonys IPELA ENGINE EX processing engine. This delivers wide dynamic range and cuts noise for crisp, clear results even in less-than-perfect lighting conditions. Built-in image stabilisation reduces the effects of vibration, making it easier to see whats happening. As an extra refinement, a built-in microphone captures audio that can be recorded along with video for live monitoring or later analysis.

Ideal for surveillance in buses or commercial transportation, the SNC-XM632 complies with ISO 16750 electrical standards for use inside road vehicles. The camera is rated IK10 for anti-vandal resistance, and carries an IP66 Ingress Protection rating against dust and water.

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf
Brochure Transport Download pdf

Specifications

Product
Model number SNC-XM632
GTIN code 4905524956566
Brand Sony
Category
IP Cameras
Dome
Camera Properties
Outdoor
Vandal resistant
Basic Functionality
Day and night
Audio support
Local Storage
Resolution
1080p (2MP)
Sony Series
X-serie
Power over Ethernet
15W
Angle of View
101° - 130°
Encoding
H264
