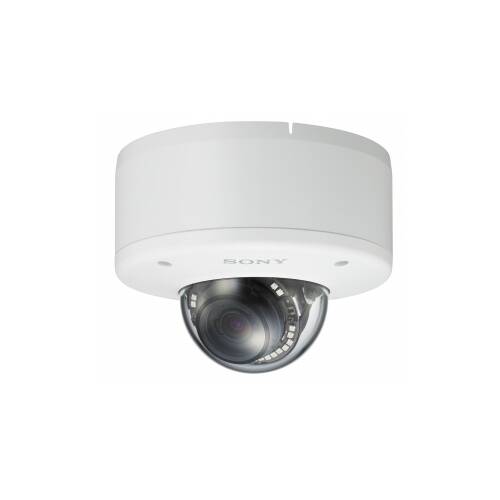

Sony SNC-VM642R

Sony Article code SNC-VM642R
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

High Sensitivity Outdoor Full HD 1080P@60fps Mini-dome Camera, 1/2.8" CMOS Exmor_R with 90dB dynamic range, and integrated IR illuminator (100m).

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description Sony SNC-VM642R

High Sensitivity Outdoor Full HD 1080P@60fps Mini-dome Camera, 1/2.8" CMOS Exmor_R with 90dB dynamic range, and integrated IR illuminator (100m). Waterproof IP66, varifocal 3-9mm lens, PoE /PoE+, 12VDC/24VAC, temp range 50C to -40C,

Tough, round-the-clock surveillance in all weathers, with excellent Full HD quality, high frame rate recording and high sensitivity, plus image stabilisation and Advanced IR technology

This minidome network camera delivers Full HD quality images around the clock – indoors or outside. The vandal- and weather-resistant SNC-VM642R is ideal for a wide range of demanding security, surveillance and monitoring applications, from banks, factories, shopping malls and offices to airports, car parks and transportation systems. The camera captures crisp, low-noise Full HD images, even in challenging low-light conditions. The sensitive 1/2.8” type Exmor R CMOS image sensor is teamed with XDNR processing, improving low-light performance and achieving the minimum illumination of 0.006 lux (30 IRE) in colour mode. Video can be captured at a high maximum frame rate of 60fps – allowing smoother, more accurate viewing of moving objects such as people or vehicles. View-DR expands dynamic range for significantly improved imaging in high-contrast and strongly backlit scenes, like sun-drenched offices or car park entrances. Image stabilisation keeps video images crisp and clear, even when the camera is subject to vibration on a mounting pole or bracket. The camera can see in conditions of complete darkness, with built-in IR (infrared) illumination that’s coupled with Advanced IR technology to capture near and far-away objects without overexposure. The SNC-VM642R can clearly capture objects in total darkness at distances up to 100m (30 IRE) from the camera. The addition of SD card edge storage allows video/audio data to be recorded directly by the camera when triggered by an alarm event. This provides valuable redundancy in the event of temporary network failure: recording to the network server resumes automatically when normal network connection is restored. Installation of the SNC-VM642R is simplified by the same familiar user interface, usability and form factor as previous-generation Sony V Series cameras. The totally sealed minidome unit assures dependable operation in challenging indoor and outdoor environments. It's capable of operating in extreme temperatures. The camera’s vandal-resistant design meets the IK10 standard (protection against mechanical impact), and is IP66 rated for protection against water and dust.

Downloads

Datasheet Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number SNC-VM642R
GTIN code 4548736057999
Brand Sony
Category
IP Cameras
Dome
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Analog
Basic Functionality
Day and night
Input/output
Audio support
Local Storage
Resolution
1080p (2MP)
Sony Series
V-serie
Power over Ethernet
30W
Angle of View
101° - 130°
Optical zoom
1-10x
Encoding
H264
