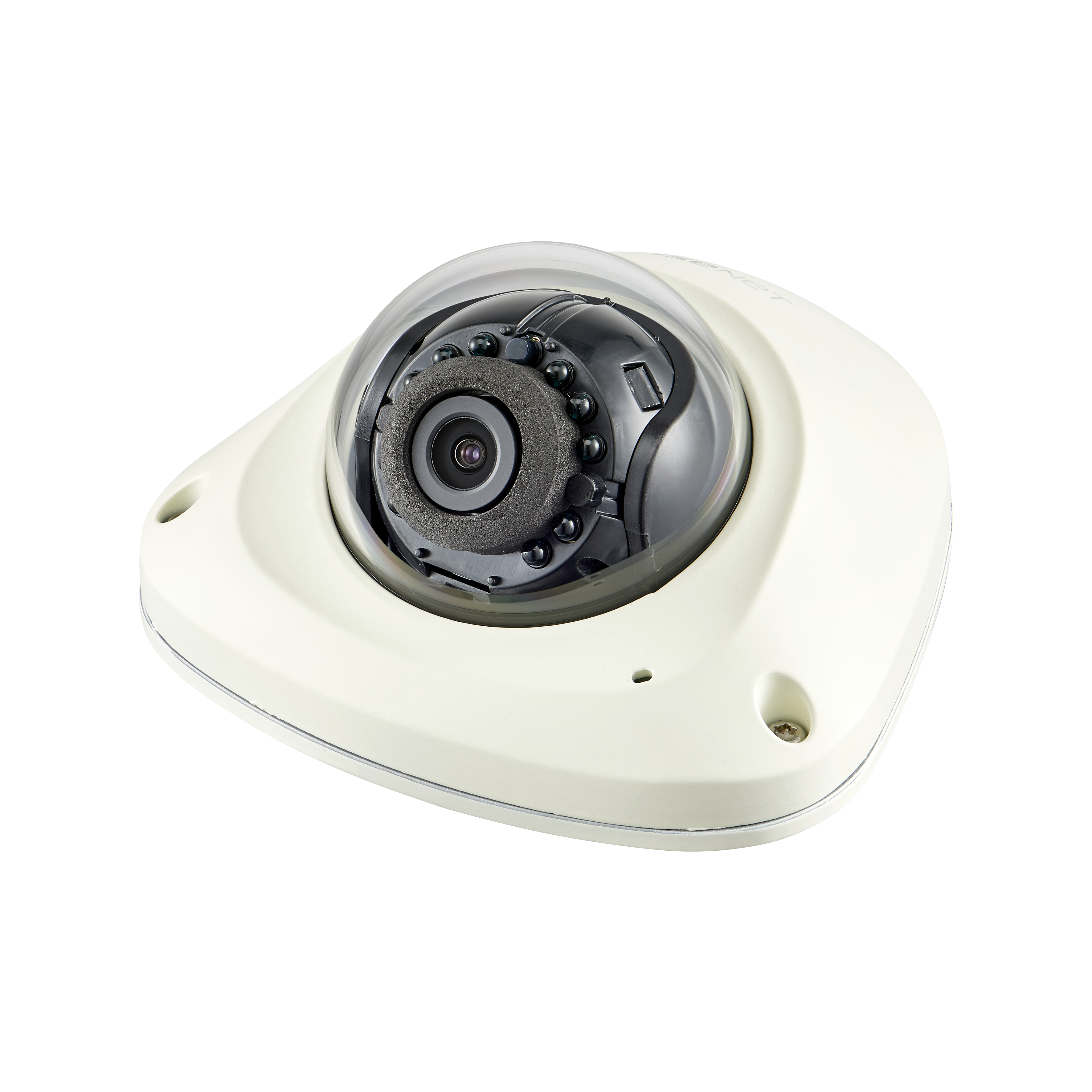

Hanwha QNV-6023R
Hanwha
Article code QNV-6023R
{{ fullProductName }}
End-of-life: Product might no longer be available
2MP Mobile IR Flat Camera, 30fps, Day / Night, Extreme 120dB WDR, IK10 Vandal Resistant
Would you like personal advice on alternatives?
Description Hanwha QNV-6023R
The QNV-6023R mobile network camera has a range of features with 2 megapixel 1080p high definition images with a 3.6mm fixed lens,WDR, and 15 meter IR LEDs. Hallway View mode optimizes the image for portrait orientation, and also includes audio input. The QNV-6023R is designed for transportation applications with its vibration resistant build (EN50155, EN50121), to ensure reliable video in any transportation environment. Rated to IP66/IK10, it can work effectively in more demanding environments that are prone to severe or varying weather conditions as well as tampering or physical attack.
Key Features:
- Max. 2Megapixel resolution
- Max. 30fps@2MP (H.265 / H.264)
- 0.03Lux@F2.0 (Color), 0Lux (B/W : IR LED On)
- Built-in 3.6mm fixed lens
- H.265, H.264, MJPEG codec supported
- Multiple streaming
- Day & Night (ICR), WDR (120dB)
- SD/SDHC/SDXC memory slot (Max. 256GB)
- IR viewable length 15m, IP66, IK10, NEMA4X
- Hallway view, PoE, LDC support
Specifications
Product
| Model number | QNV-6023R |
| GTIN code | 8801089174277 |
| Brand | Hanwha |
| Category |
IP Cameras
Dome
|
| HS Code |
852589
|
| Country of origin |
Vietnam
|
| Weight |
295 grams
|
| Size (lxwxh) |
175
x 175 x 166 millimeters
|
|
Camera Properties
|
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
Local Storage
|
|
Resolution
|
1080p (2MP)
|
|
Software
|
Analytics
|
|
Hanwha Series
|
Wisenet Q
|
|
Angle of View
|
91° - 100°
|
|
Encoding
|
H264
H265
MJPEG
|
| Date published | 3/10/2021 |
| EOL since | 10/9/2026 |
