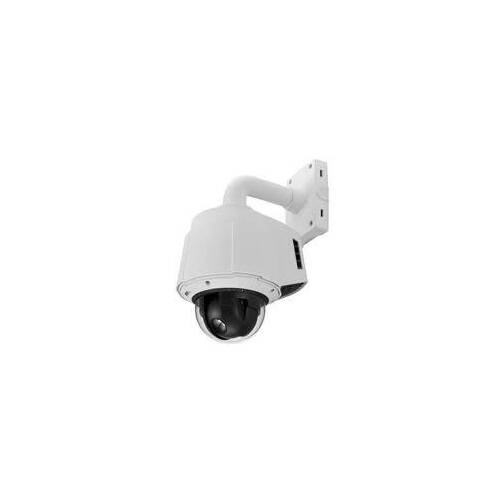

AXIS Q6032-C

AXIS Q60-C series PTZ Dome Cameras with active cooling

Operates in temperatures up to 75 Celsius Simple and reliable installation Dust and waterproof, meets military standard Extended D1 resolution and 36x optical zoom Tilt range up to 20 degrees above the horizon SFP slots for fiber optics, RJ-45 connection for UTP I / O for alarm in / from Active Gatekeeper

For demanding outdoor video surveillance

The AXIS Q6032-C is an outdoor-ready PTZ dome network camera that offers reliable surveillance in environments where the temperature can rise under the influence of solar radiation. The extended D1 resolution and 36x optical zoom with autofocus enable the camera to view large areas in detail. It is ideal for use in construction work, construction sites, oil / gas pipelines and city surveillance.

Reliable operation under extreme heat

With the built-in active cooling system, the AXIS Q6032-C can operate under temperatures of up to 75 Celsius. The dustproof and waterproof camera is IP66 and NEMA 4X-rated and meets the strict military standard MIL-STD-810G, and ensures reliable functioning under very difficult weather conditions.

Flexible installation and easy integration

The included media converter switch makes it possible to connect the AXIS Q6032-C to the network in a daisy chain using standard network or fiber optic cables and helps to keep costs low when cameras have to be installed over longer distances. The media converter switch also makes it possible to connect the cameras to external alarm equipment via two configurable input / output ports and with a 12 V power supply.

Precise pan / tilt performance and intelligent video

The AXIS Q6032-C has a fast and accurate pan / tilt response. In addition, it can tilt up to 20 degrees above the horizon and has a total tilting range of 220 degrees, which provides better visibility, especially on uneven terrain. When using the Active Gatekeeper, the camera can automatically assume a preset position if motion is detected in a predefined position. defined area and then continue to follow the moving object. The camera also supports 3rd party intelligent video applications via the AXIS Camera Application Platform.

Day / night functionality for clear video even in low light conditions Wide dynamic range for better visibility of objects in dark or light areas of a scene. Progressive scan, E-flip Multiple, individually configurable streams in H.264 and Motion JPEG Tour recording function adjustable with, for example, joystick Edge storage with built-in SD / SDHC memory card slot Advanced security and network management features Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection
