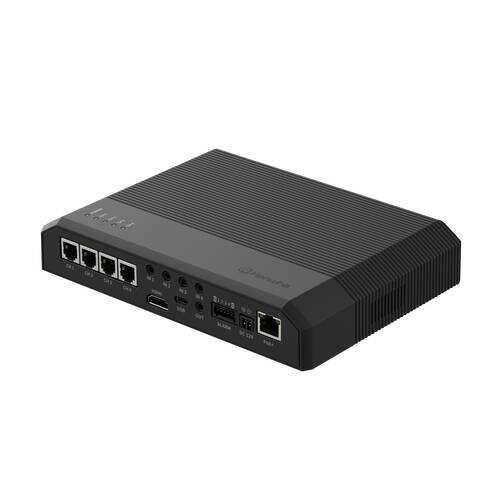

Hanwha PNM-C20000QB

Hanwha Article code PNM-C20000QB
Coming soon

NetcamCenter {{ fullProductName }}

4 Channel Main unit, modular, AI remote-head-Camera, 4 configurable I/O ports
Coming soon
Buy now
+ Quote
  • 4 Channel main unit
  • 4 configurable I/O ports

Description Hanwha PNM-C20000QB

P series network remote head camera 4CH x 2MP @ 30FPS or 4CH x 5MP @ 15FPS, Triple codec H.265/H.264/MJPEG, 120dB WDR, Analytics events based on AI engine:

Classified object type: Person/Face/Vehicle/License plate, Attributes: Vehicle(Type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, Intrusion), Appear/Disappear, Business intelligence based on AI engine:

People counting, Vehicle counting, Queue management, Heatmap, WiseNR Ⅱ(Based on AI engine), WiseStreamⅢ(Based on AI engine), USB-C for easy installation, 4 x Selectable I/O, 4 x Audio inputs, 1 Audio Out, TPM with FIPS 140-3 level3, Built-in microSD card slots (Up to 512GB x2), 12VDC/PoE+, Compatible with 2MP: SLA-T4680A/T4680VA, SLA-T2480A/T2480VA, SLA-T1080FA and 5MP: SLA-F1080FA, SLA-F2480WA/F2480WDA, SLA-F2480A/F2480VA, SLA-F4780A/F4780VA ※

Lenses are not included

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf

Specifications

Product
Model number PNM-C20000QB
GTIN code 8801089240538
Brand Hanwha
Category
IP Cameras
Modular
HS Code
852589
Country of origin
Vietnam
Weight
1015 grams
Size (lxwxh)
189 x 252 x 93 millimeters
Basic Functionality
Input/output
Local Storage
Hanwha Series
Power over Ethernet
30W
Encoding
H264
H265
MJPEG
Various
New
Date published 7/2/2025
