Hanwha PNM-9022V
Hanwha
Article code PNM-9022V
{{ fullProductName }}
End-of-life: Product might no longer be available
2MP Panoramic camera, 30fps, Day/Night, Extreme 120dB WDR, 2.8mm Fixed Lens
Successor
Would you like personal advice on alternatives?
Description Hanwha PNM-9022V

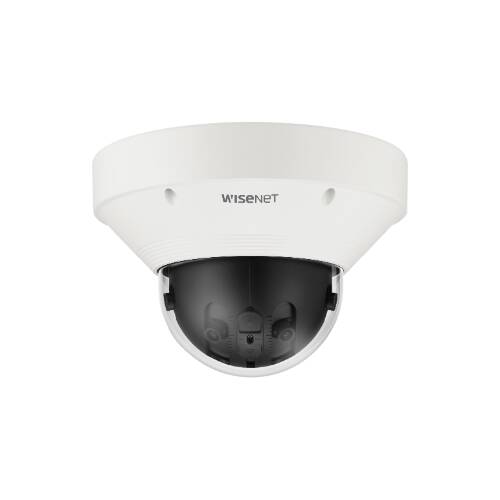

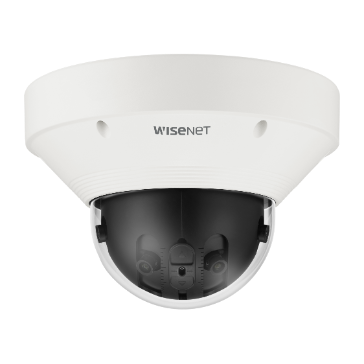

Network vandal outdoor Multi-sensor dome camera, Panoramic 180º view, (2MP X 4 sensors) 8.3MP @ 30fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, defocus detection, PTZ handover and built-in analytics, Heatmap, IP66/IK10
Key Features:
- Max. 2MP x 4CH
- 209˚ Mode, 180˚ Mode support
- 2.8mm fixed focal lens x 4
- H.265/H.264 : Max. 30fps
- MJPEG : Max. 30fps
- extreme WDR (120dB)
- H.265, H.264, MJPEG codec, WiseStreamII supported
- Digital PTZ Support (2CH)
- Tampering, Heatmap
- IP66, IK10, NEMA4X
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | PNM-9022V |
| GTIN code | 8801089176479 |
| Brand | Hanwha |
| Category |
IP Cameras
Panoramic
|
| HS Code |
852589
|
| Weight |
3200 grams
|
| Size (lxwxh) |
324
x 335 x 246 millimeters
|
|
Hanwha Series
|
Wisenet Q Mini
|
|
Power over Ethernet
|
30W
|
|
Angle of View
|
180° - 360°
|
|
Encoding
|
H264
H265
MJPEG
|
| Date published | 11/12/2025 |
