Bosch NKN-71022-BA3-10N

NKN-71022-BA3-10N

Recording element: 1 / 2.7 "CMOS sensor

IP stream: H.264, M-JPEG and JPEG

Resolution: 2MP 1920 x 1080 (max. 25 pps)

Objective (fixed or interchangeable): LVF-5003N-S3813, 3.8-13 mm

Opening angle: 79 x 43 ° Wide, 23 x 13 ° Tele

Scene lighting (usable image): color 0.22 lux F1.2, monochrome 0.05 lux F1.2

Ethernet: RJ45, 10/100 Base-T

SD memory card (SDxC): memory card slot support SDHC and SDXC up to 2TB

Video output: analog output 4: 3 or 16: 9 via NBN-MCSMB-03M or NBN-MCSMB-30M monitor cable (optional)

Software: web browser / BVC

Other: IVA, privacy marking (4 sectors), full support of multicasting, internet streaming and iSCSI recording, 2 x alarm input, 1 x relay output, 1 x audio input, 1 x audio output and data port RS232 / 422/485, camera with Starlight technology, iAE intelligent Auto Exposure

Housing / IP value: aluminum incl. Lens hood / IP66, NEMA 4X

Tripod: cream (included)

Color (housing): aluminum, cream color

Dimensions (W x H x D): 172 x 126 x 480 mm (excl. Wall stand)

Power / consumption: 24Vac / 45W

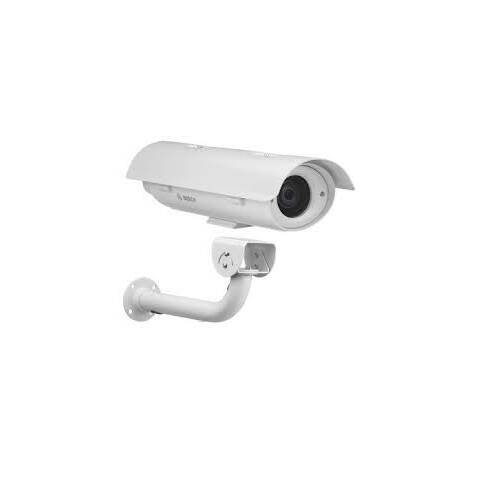

DINION IP 7000 HD KIT

Stylish and sturdy housing (IP66; NEMA 4x)

High resolution 1080p, HD format

Intelligent noise reduction reduces bandwidth and storage requirements by up to 50%

Auto back focus for fast installation

Content-based scene analysis optimizes image processing

These pre-packaged camera kits are complete surveillance systems that are quick and easy to install thanks to their plug and play design. Each kit includes a housing with a factory-installed high-performance DINION camera and varifocal lens, plus a swivel mount.

DINION IP 7000 HD cameras are 1080p30 progressive scan CMOS cameras that use the Bosch-designed digital imaging technology. The camera delivers the highest standards of performance and reliability in any security and surveillance scenario, day or night. Features such as multicasting, internet streaming and iSCSI recording are fully supported.

Compared to SD cameras, the DINION IP 7000 HD offers, at a higher cost, motorized autofocus, higher resolution, better sensitivity, higher frame rates, and improved picture quality, and is still more bandwidtheefficient. Video storage costs are significantly reduced.

Hybrid operation

A surge-protected analog video output allows full hybrid operation. This means that high resolution IP video streaming and analog video output are available simultaneously. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.
