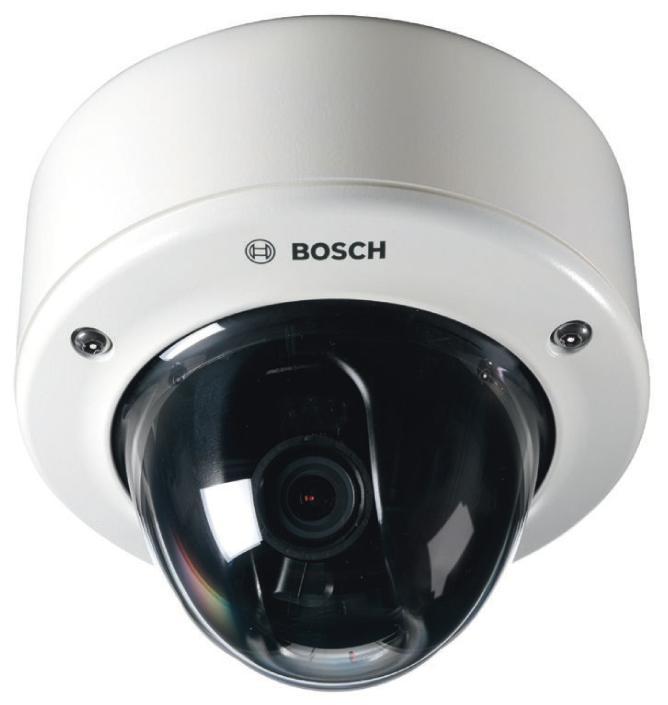

Bosch NIN-932-V10IP

Bosch Article code NIN-932-V10IP
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

Bosch NIN-932-V10IP, Flexidome IP dynamic 7000 VR, outdoor, surface mounted, d / n, 1080p, 30 fps, PoE, audio, vandal-proof, 10-23mm AVF-SR, 10.9degree-24degree, IVA

Successor

Would you like personal advice on alternatives?

Discontinued
+ Quote

Description Bosch NIN-932-V10IP

NIN-932-V10IPS Bosch FlexiDome HD 1080P VR HDR D / N H.264 10-23 mm PoE IVA surface-mounted

Recording element: 1/3 "CMOS sensor

IP stream: H.264, M-JPEG and JPEG

Resolution: 1080p 1920 x 1080 (max. 30 pps)

10-23 mm AVF-SR Objective (not interchangeable)

wide reach

IVA

Scene lighting (usable image): Color 0.25 lux F1.2, monochrome 0.08 lux F1.2

Ethernet: 10Base-T / 100Base-TX

SD memory card (SDXC): Equipped with SD memory card slot

Video output: Analog video output (optional S1460)

Other: HDR, IVA, ABF, WDR, 2X DSP, autoblack, Smart BLC, privacy masking, data port RS485 / 422/232, 2x alarm input, 1x relay output, 1x audio input, 1x audio output

Housing / IP value: Vandal-proof (recessed mounting) / IP66

Dimensions (dxh): 158 x 124 mm

Power / consumption: PoE or 24Vac / 12Vdc (excl. Power supply) / 7.2W

FLEXIDOME IP dynamic 7000 VR

High dynamic range (HDR) to make details visible in light and dark areas at the same time

Content-based analysis of scenes for optimum image processing

Intelligent noise reduction reduces bandwidth and required storage capacity by up to 30%

Beautifully designed vandal-proof housing, suitable for indoor and outdoor applications

Easy to install with SR lens with automatic zoom / focus

The FLEXIDOME HD 1080p VR dome camera with high dynamic range combines intelligence with

adaptive video processing and in this way ensures high-quality, content-based images in every security or surveillance scenario, both at night and during the day.

The attractive, vandal-proof housing makes the camera suitable for indoor or outdoor use

outdoor installation. Basic functions High dynamic range (High Dynamic Range, HDR)

Pay attention:

This camera comes standard without an AC adapter.

If you do not yet have a network with power supply via ethernet (PoE, 802.3af), you must make a choice from the following options:

You order the PoE-Midspan below for 1 camera

For larger numbers of cameras with PoE, contact us for a customized offer for a suitable switch with PoE with sufficient power for your situation.

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Specifications

Product
Model number NIN-932-V10IP
Brand Bosch
Category
IP Cameras
