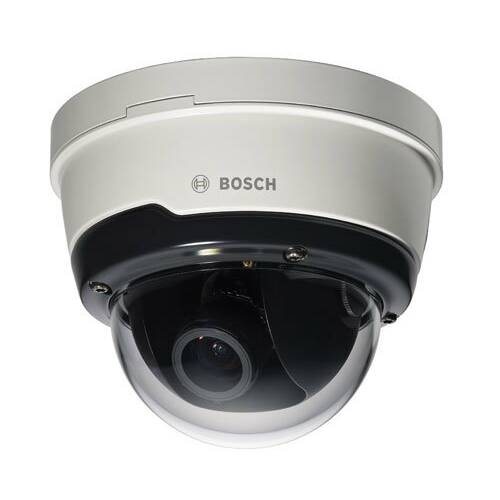

Bosch NDN-50022-A3

The NDN-50022-A3 FLEXIDOME Outdoor 5000 HD from Bosch is equipped with a 1 / 2.7 "CMOS sensor that captures clear images in HD resolution. The camera uses Intelligent Dynamic Noise Reduction, which actively analyzes the contents of a scene and reduces noise artifacts accordingly Multi-streaming function delivers different H.264 streams together with an MJPEG stream, enabling bandwidth-efficient playback and recording, as well as integration with third-party video management systems.

Two-way audio allows the user to communicate with visitors or intruders via an external audio input and output. The MicroSD card slot supports a maximum of 2TB of storage capacity. The camera is equipped with mechanical filter technology for vivid colors during the day and an exceptional night view, while the focus remains sharp under all lighting conditions.

Ideal for outdoor use, the IK10 classified design is suitable for installations where vandalism is important. The camera is protected against water and dust according to the IP66 standards. With the varifocal lens you can choose the coverage area that best fits your application. The Bosch video security mobile app has been developed to allow access to HD surveillance images anywhere, allowing you to view live images from anywhere. The app is designed to give you complete control over all your cameras, from panning and tilting to zoom and focus functions.

Vandal-proof outer dome with varifocal lens

Ideal for outdoor use, the IK10 classified design is suitable for installations where vandalism is important. The camera is protected against water and dust according to the IP66 standards. With the varifocal lens you can choose the coverage area that best fits your application. There are numerous mounting options, including mounting on the surface, the wall and the suspended ceiling.

Intelligent dynamic noise reduction

The camera uses Intelligent Dynamic Noise Reduction, which actively analyzes the content of a scene and accordingly reduces noise artifacts. The low-noise image and efficient H.264 compression technology ensure clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras. This results in streams with reduced bandwidth that still maintain high image quality and smooth motion. The camera offers the most useful image that is possible by cleverly optimizing the ratio between detail and bandwidth.

Area-based coding

Area-based coding is another feature that reduces bandwidth. Compression parameters for up to eight user-defined regions can be set. This makes it possible to compress uninteresting regions, leaving more bandwidth for important parts of the scene.

Multiple streams

The innovative multi-streaming function delivers various H.264 streams together with an MJPEG stream. These streams enable bandwidth-efficient playback and recording, as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream offers a copy of the first stream or stream with a lower resolution. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image with a maximum of 10 Mb / s.

Regions of interest and E-PTZ

Regions of Interest (ROI) can be defined by the user. With the external E-PTZ controls (electronic pan, tilt and zoom) you can select specific areas of the parent image. These areas produce separate streams for remote viewing and recording. These streams, along with the main stream, enable the user to monitor the most interesting part of a scene individually while maintaining situational awareness.
