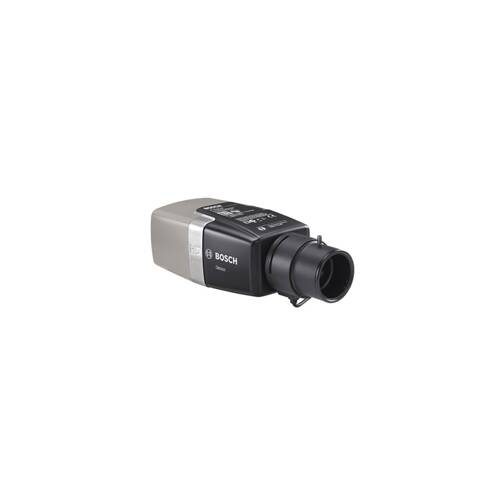

Bosch NBN-71022-BA

Bosch NBN-71022-BA, excluding lens

Recording element: 1 / 2.7 "CMOS sensor

excluding lens

IP stream: H.264, M-JPEG and JPEG

Resolution: 2MP 1920 x 1080 (max. 25 pps)

Scene lighting (usable image): color 0.22 lux F1.2, monochrome 0.05 lux F1.2

Ethernet: RJ45, 10/100 Base-T

SD memory card (SDXC): memory card slot support SDHC and SDXC up to 2TB

Video output: analog output 4: 3 or 16: 9 via S1460 monitor cable (optional)

Lens mount: CS

Other: privacy marking (4 sectors), full support for multicasting, internet streaming and iSCSI recording, 2 x alarm input, 1 x relay output, 1 x audio input, 1 x audio output and data port RS232 / 422/485

iAE intelligent Auto Exposure

Dimensions (W x H x D): 66 x 78 x 140 mm

Power / consumption: PoE or 12Vdc / 24Vac / max. 8.4W

In / outdoor with housing

NBN-71022-B Motion +, NBN-71022-BA IVA

WDR: NBN-71022-B 76dB, NBN-71022-BA + 16dB

DINION IP 7000 HD

High resolution 1080p, HD format

Intelligent noise reduction reduces bandwidth and required storage capacity by up to 50%

Automatic back focus for fast installation

Content-based analysis of scenes for optimum image processing

Fully hybrid for easy migration from analogue to IP systems

DINION IP 7000 HD cameras are 1080p30 cameras with progressive scan, which use the technology developed by Bosch for digital image processing. The camera delivers optimum performance and reliability for every security and surveillance scenario, both during the day and at night. Functions such as multicasting, internet streaming and iSCSI recording are fully supported.

In comparison with SD cameras, the DINION IP 7000 HD offers motorized autofocus, higher resolution, better sensitivity, higher frame rates and improved image quality, and is also bandwidth more efficient. The costs for video storage are considerably reduced.

Hybrid effect

An analog video output with overvoltage diversion with full hybrid operation. This means that high-resolution IP streaming and an analog video output via an SMB connector are available at the same time. The hybrid functionality offers a simple migration path from an older CCTV system to a modern IP-based system.
