Mobotix Mx-VMSD1A-2021-VA
Mobotix
Article code Mx-VMSD1A-2021-VA

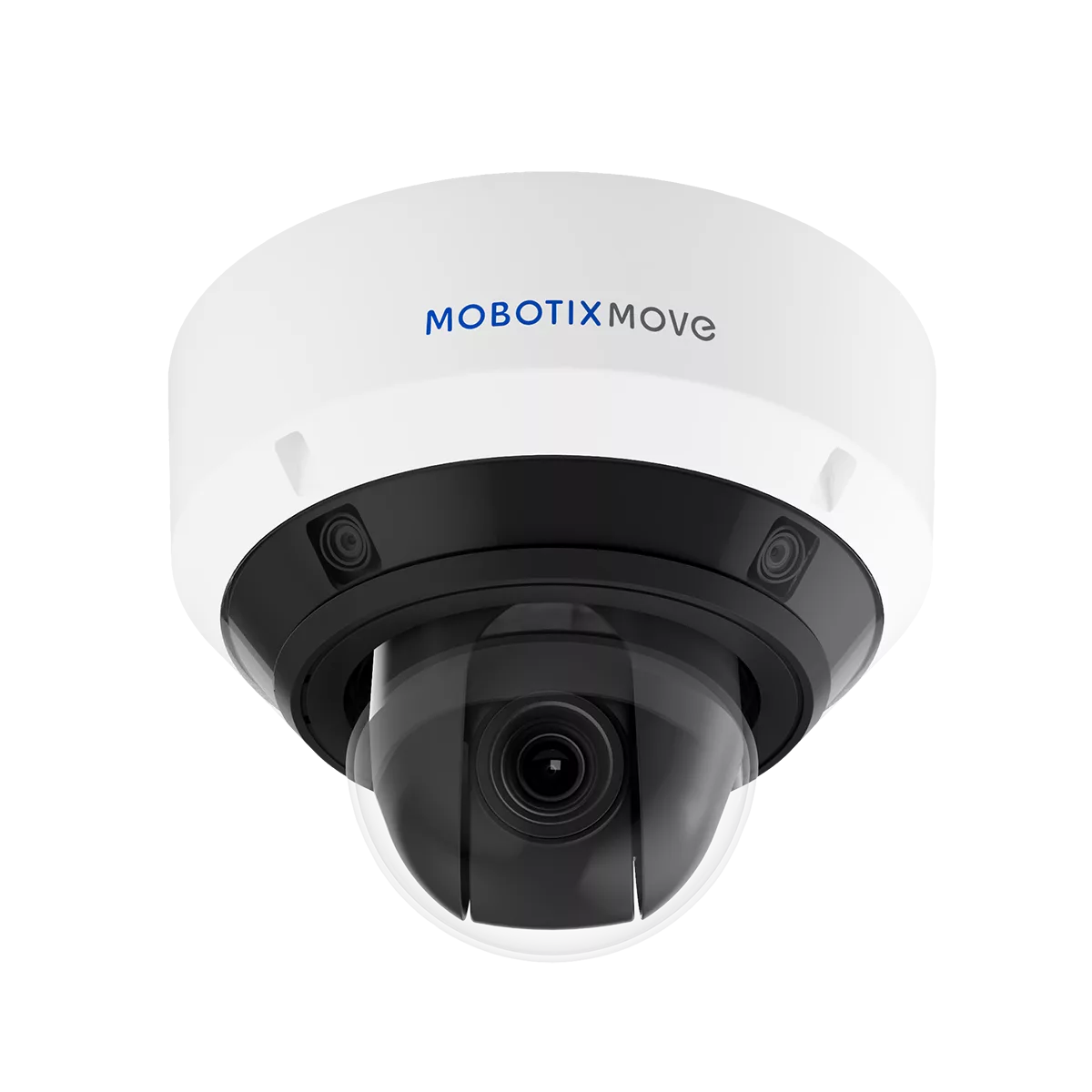

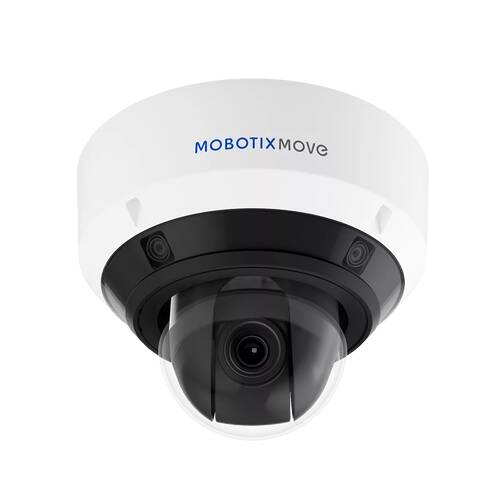

MOBOTIX MOVE Outdoor Vandal Multisensor PTZ Combo 20MP (4x5MP) and one 2MP PTZ camera with 21x zoom
Description Mobotix Mx-VMSD1A-2021-VA
MOBOTIX MOVE Vandal Multisensor PTZ Combo 20MP Video Analytics Camera
The MOBOTIX MOVE Vandal Multisensor PTZ Combo 20MP Video Analytics Camera incorporates four 5MP fixed-lens sensors plus one 2MP (1080p) PTZ network camera with remote-controlled 21x zoom/focus lens for optimum positioning and alignment to the application needs. The camera provides four individual video-streams plus a combined stream of all four video streams for undistorted 360° views, making it ideally suited for surveillance of large areas or road intersections. Multiple sensor modules and the integrated AI-VMD analytics features enable the detection of vehicles and motion, as well as object tracking via the motorized PTZ unit.
Key features:
- 4 x 5MP multi-directional camera+2MP (1080p) 21x PTZ camera
- Fixed-focus lens 3.2 mm (multisensor) and 21x motorized zoom/focus lens 4.0 to 84.6 mm (PTZ)
- WDR up to 144 dB
- Quad streaming H.264/H.265/MJPEG
Specifications
Product
Model number | Mx-VMSD1A-2021-VA |
GTIN code | 4047438047524 |
Brand | Mobotix |
Category |
IP Cameras
PTZ
|
HS Code |
852589
|
Country of origin |
Germany
|
Weight |
4950 grams
|
Size (lxwxh) |
340
x 287 x 345 millimeters
|
Camera Properties
|
Outdoor
|
Basic Functionality
|
Input/output
Local Storage
|
Resolution
|
4K (8.3MP) or higher
|
Mobotix Series
|
Move
|
Power over Ethernet
|
60W
|
Angle of View
|
180° - 360°
|
Optical zoom
|
18-27x
|
Encoding
|
H264
H265
MJPEG
|
