Mobotix Mx-VB1A-4-IR
Mobotix
Article code Mx-VB1A-4-IR
{{ fullProductName }}
End-of-life: Product might no longer be available

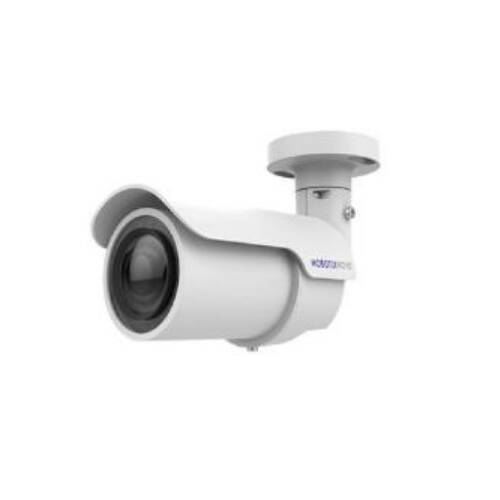

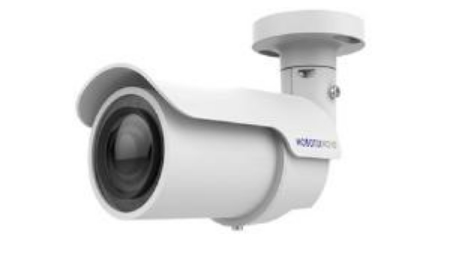

MOBOTIX MOVE VandalBullet VB1A-4-IR
Successor
Would you like personal advice on alternatives?
Description Mobotix Mx-VB1A-4-IR
- MOBOTIX MOVE Bullet Network Camera VB1A-4-IR
- Image sensor: 4MP (2688x1512), 1/3" Progressive CMOS
- Weatherproof ONVIF S / G bullet camera with built-in IR LEDs (up to 30m) for use with Day and night
- Automatic changeover from color to B / W image (mechanical IR cut filter)
- Remote Zoom
- Motor-controlled Varifocal lens (F1.6: 2.7 to 12 mm, viewing angle H: 99 ° - 31 °, V: 53 ° - 18 °) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations
- IP66, IK10
- Ambient temperature -30 to 60°C, humidity 10 to 90%
- Video codecs: H.264, MJPEG (up to 3 streams simultaneously )
- WDR (120 dB)
- Max. Frame rate: 4MP @ 30B / s (H.264); MJPEG: 1080p @ 30 B / s
- Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W
- Warranty: 2 years
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | Mx-VB1A-4-IR |
| GTIN code | 4047438034395 |
| Brand | Mobotix |
| Category |
IP Cameras
Bullet
|
|
Camera Properties
|
Outdoor
Vandal resistant
|
|
Basic Functionality
|
Day and night
Input/output
Audio support
Local Storage
|
|
Resolution
|
4MP
|
|
Mobotix Series
|
Move
|
|
Power over Ethernet
|
15W
|
|
Angle of View
|
61° - 90°
|
|
Optical zoom
|
1-10x
|
|
Encoding
|
H264
|
