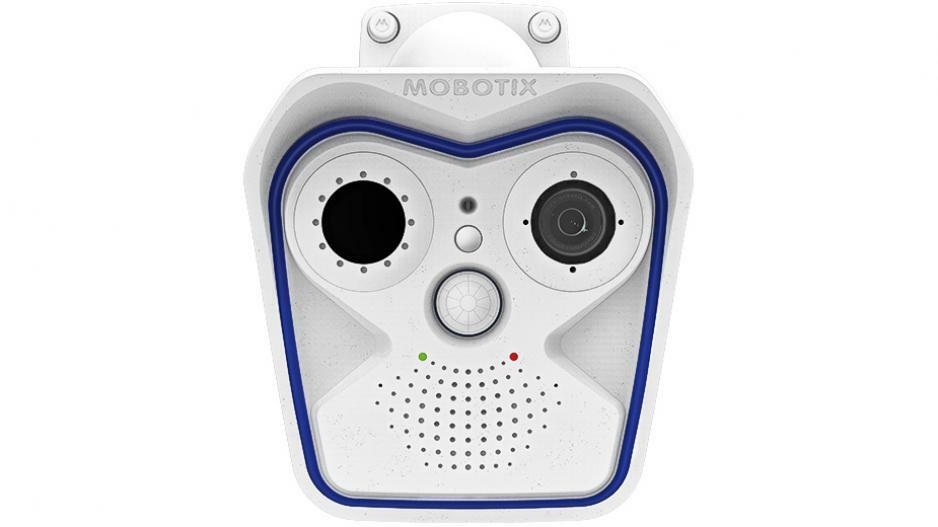

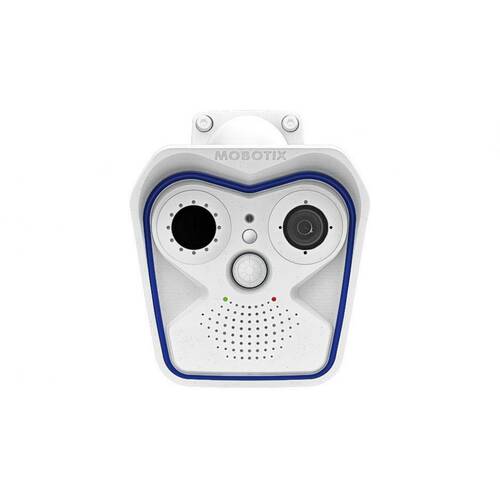

Mobotix Mx-M16TB-R237-EN54

Key Features:

EN54 Bundle

• IP thermographic camera TR with Germanium Lens: B237 equivalent, horizontal/vertical image angle 17°/13°

• ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG

• Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F)

• NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second, 336 x 252 pixels (can be scaled up to 6MP)

• Optional optical 6MP sensor module (to be ordered individually)

• IP66/IK07, -40 to 60°C (-40 to 140°F)

• Internal DVR: 4 GB microSD

• System components: speaker and microphone (inside housing), PIR sensor, temperature sensor, MxActivitySensor, shock detector

• VarioFlex wall mount (can be used with additional ceiling mount MX-DH-M24-SecureFlex and pole mount MX-MH-SecureFlex-ESWS), ethernet patch cable 0.5 m/1.65 ft

• Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; IO and RS232 via additional MX Interface Box

• Incl. 1 Blind Module (MX-SM-Blind-PW)
