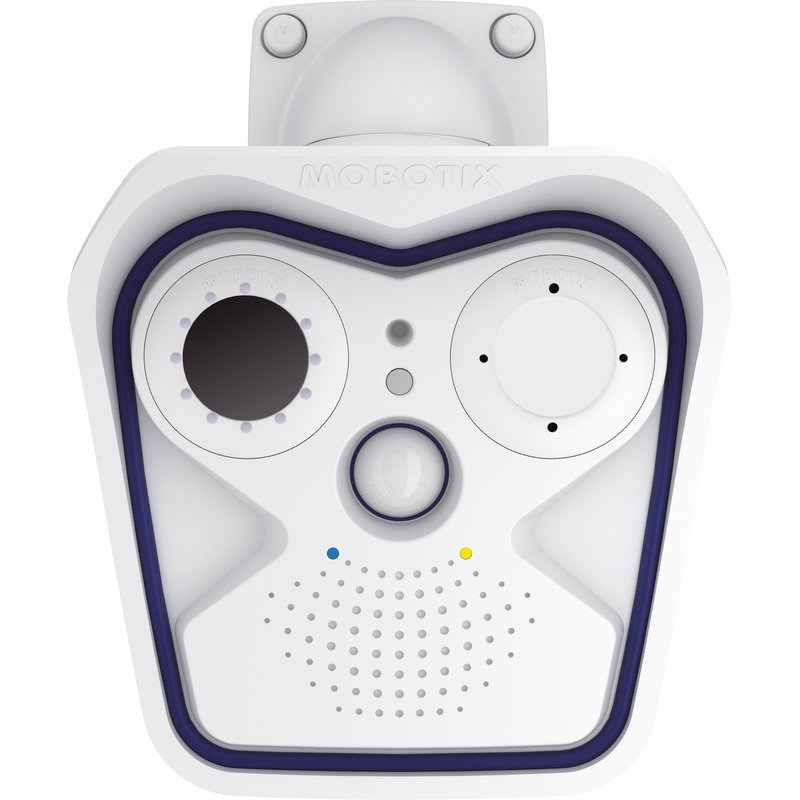

Mobotix Mx-M16TB-R079
Mobotix
Article code Mx-M16TB-R079
{{ fullProductName }}
M16B Thermographic Camera TR, 50 mK, R079 (45°), Thermal Radiometry
- Featuring Thermal Radiometry For Measurable Added Value.
- angle of view 45°
- Additional image sensor module options.
- MxActivitySensor can also be used in total darkness.
Description Mobotix Mx-M16TB-R079
- IP thermographic camera TR with Germanium Lens: B079 equivalent, horizontal/vertical image angle 45°/32°
- ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
- Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F)
- NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second, 336 x 252 pixels (can be scaled up to 6MP)
- Optional optical 6MP sensor module (to be ordered individually)
- IP66/IK07, -40 to 60°C (-40 to 140°F)
- Internal DVR: 4 GB microSD
- System components: speaker and microphone (inside housing), PIR sensor, temperature sensor, MxActivitySensor, shock detector
- VarioFlex wall mount (can be used with additional ceiling mount MX-DH-M24-SecureFlex and pole mount MX-MH-SecureFlex-ESWS), ethernet patch cable 0.5 m/1.65 ft
- Interfaces: Ethernet 10/100 (RJ45), MxBus, USB: IO and RS232 via additional MX Interface Box
- Incl. 1 Blind Module (MX-SM-Blind-PW)
Select your 2nd non-thermal Sensor module here:
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | Mx-M16TB-R079 |
| GTIN code | 4047438030984 |
| Brand | Mobotix |
| Category |
IP Cameras
Thermal
|
| HS Code |
852589
|
| Country of origin |
Germany
|
| Weight |
2480 grams
|
| Size (lxwxh) |
296
x 196 x 180 millimeters
|
|
Camera Properties
|
Outdoor
Vandal resistant
|
|
Basic Functionality
|
Day and night
Input/output
Audio support
Local Storage
|
|
Resolution
|
≤ 720p (1MP)
|
|
Mobotix Series
|
M16 AllroundDual
|
|
Power over Ethernet
|
15W
|
|
Angle of View
|
31° - 60°
|
|
Encoding
|
H264
MXPEG
|
|
Thermal camera properties
|
Dual lens
|
