AXIS M5014-V

AXIS Article code 0553-001
END-OF-LIFE

NetcamCenter {{ fullProductName }}

End-of-life: Product might no longer be available

Axis M5014-V PTZ mini Dome, Vandaalbestendig, H.264, IP66, IK10, HDTV 720p, PoE

Successors

Would you like personal advice on alternatives?

Product variants
Discontinued
+ Quote

Description AXIS M5014-V

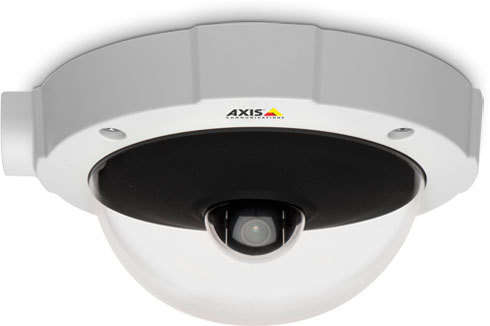

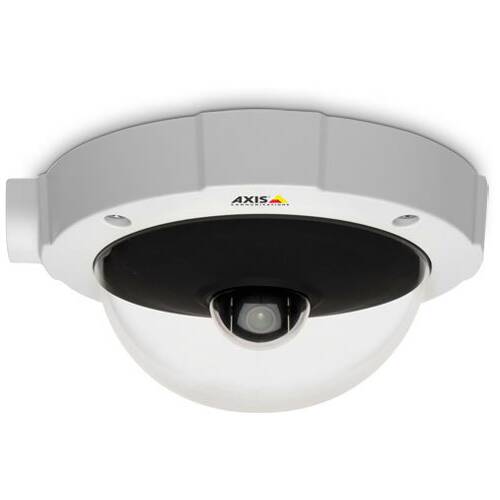

AXIS M5014-V PTZ Dome Vandal-proof Network Camera - Mini PTZ dome for the big


Vandal-proof dome PTZ camera

Pan, tilt, zoom in an ultra-discreet design

HDTV 720p (1280x720) resolution

Multiple H.264 and MotionJPEG streams

IP66 rated protection against dust, moisture and dripping water

IK10 rated

Power over Ethernet (IEEE 802.3af class 3)

Built-in microphone and audio detection

3.6 mm, F1.8 Lens, Hor. angle of view: 71 degrees

Max 25 preset positions

Up to 30 fps in all resolutions

The AXIS M5014-V PTZ Dome Network Camera is a palm-sized pan / tilt / zoom camera, attractively priced for remote and discreet monitoring of places indoors such as shops, banks, hotels, offices, restaurants and department stores. But also easy to place in damp places.

The AXIS M5014-V delivers full frame rate video in HDTV 720p (1280x720) resolution and is characterized by progressive scan, HDTV color fidelity, and a 16: 9 format. It can send multiple H.264 and Motion JPEG video streams simultaneously. The H.264 compression optimizes bandwidth and storage consumption without compromising image quality.

With an IP66 rating, the camera is safe from dust and dripping water, which makes it possible to keep shooting even when, for example, the sprinkler system is activated. The AXIS M5014-V is designed for quick and easy installation. The camera is powered by Power over Ethernet (PoE) via a PoE switch or mid-span, this eliminates the need for separate power cables and reduces installation costs.

The built-in microphone gives users the ability to listen and record sound. Audio detection of unusual sounds can trigger alarms during closing time. The microSD / SDHC card slot offers the possibility to make local recordings on a microSDHC card.

Supplied including: Mounting brackets for hard and soft ceilings, Quick Guide, CD with installation tools, recording software and Users Manual, Windows decoder 1-user license. Exclusive mid-car

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf
Product dimensions Download pdf
Product Discontinuation Statement Download pdf

Specifications

Product
Model number 0553-001
Brand AXIS
Category
IP Cameras
Axis Series
M50
