2N Helios IP Uni 1 Button

2N Article code 9153101

NetcamCenter {{ fullProductName }}

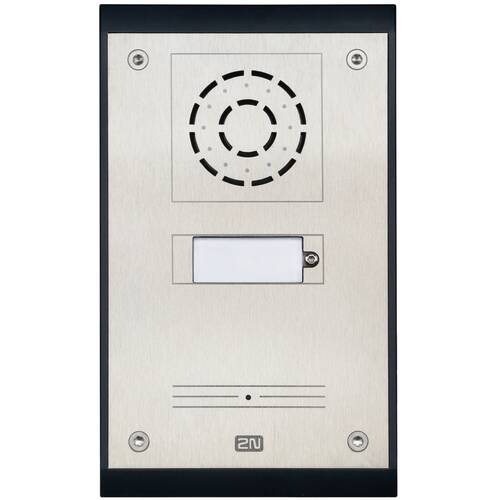

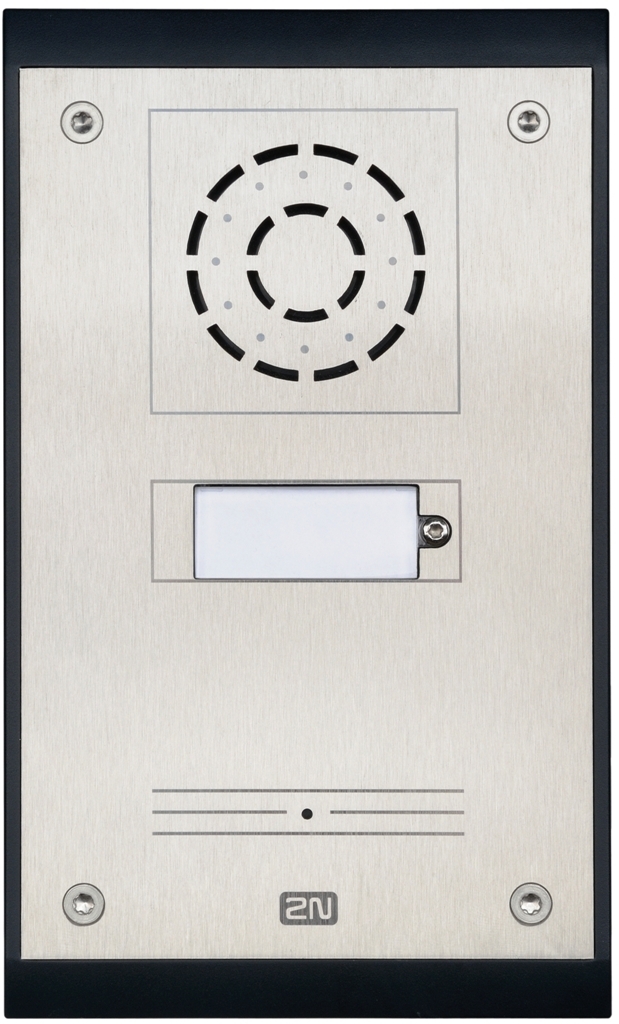

2N, Helios IP Uni outpost with 1 push button with background lighting, control of one electric lock, protective switch
In stock
Buy now
+ Quote
  • 1 Button
  • Control of one electric lock
  • Protective switch

Description 2N Helios IP Uni 1 Button

2N, Helios IP Uni outdoor station with 1 backlit push button, SIP-based, 1 Watt loudspeaker, IP54, PoE/12 VDC.

Fully IP-based intercom system, easy to configure via web browser, SIP2.0 protocol, easy installation, 2 voice channels, adjustable time profiles, PoE (class 802.3af) or 12 VDC/2 Amp, passive switch NO/NC max. 30 V/1 Amp, active output 8 - 12 VDC depending on the power supply, max. 500 mA, degree of protection IP54 with operating temperature -40 to +55 C, can be used with applications for iOS & Android and various softwares, dimensions: 193 x 115 x 39mm.

Key Features:

  • Thanks to the 2N IP Uni you can simply and easily replace any existing analogue intercom
  • IP Uni intercom can be fitted with a tamper switch that detects unauthorized opening of the device itself
  • SIP protocol support makes it easy to link the intercom with IP phones and PBX from other producers, without having to connect to the server
  • The device can be fitted with an induction loop and pictograms suitable for communication with the hearing impaired

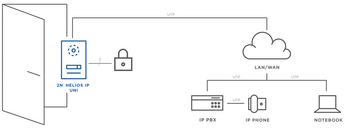

Helios IP Uni Diagram

Downloads

Datasheet Download pdf
User manual Download pdf
Installation manual Download pdf

Specifications

Product
Model number 9153101
GTIN code 8595159500690
Brand 2N
Category
IP Cameras
Door intercom
HS Code
851769
Country of origin
Czechia
Weight
810 grams
Access Control
Doorstation
Toegangscontrole functies
Overig Toegangscontrole
