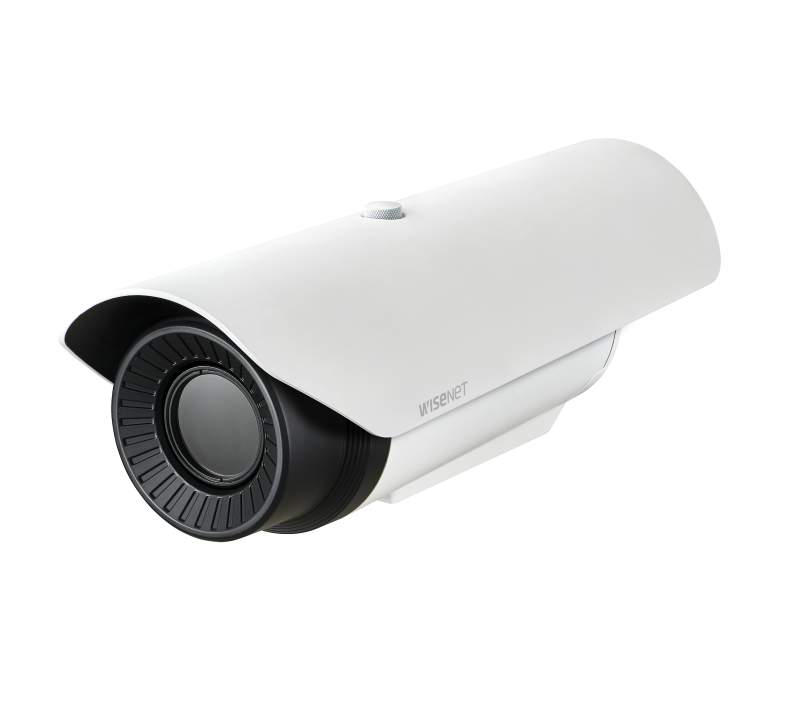

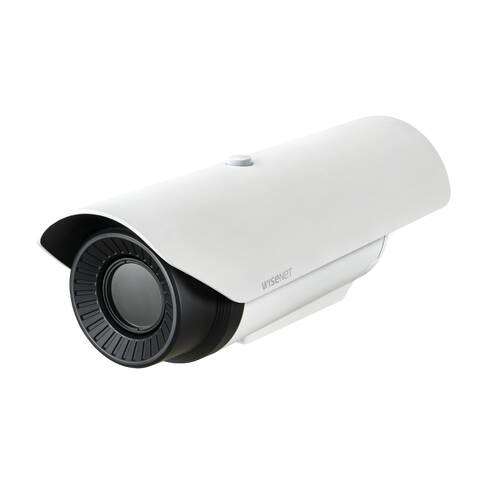

Hanwha TNO-4051T
Hanwha
Article code TNO-4051T
{{ fullProductName }}
Outdoor Thermal Camera, 35mm, 17.2°, 30fps, 640x480 Resolution
- 640x480 resolution
- 35mm with 17.2° angle of view
Description Hanwha TNO-4051T
T-series thermal network outdoor camera, VGA @30fps, 35mm fixed lens (17.2°), triple codec H.265/H.264/MJPEG with WiseStream II, multiple streaming, corridor view, motion detection, tamper detection, transfer, 7 color palettes, Digital image stabilization with built-in gyro sensor, Bidirectional audio and microSD/SDHC/SDXC slot, IP66, IK10, Nema 4X, PoE/12VDC/24VAC
Key features:
- High resolution thermal VGA resolution (640 x 480).
- Outdoor camera for pan/tilt head integration
- Built-in 35mm fixed lens
- 30 fps at all resolutions (H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Tampering, Loitering, Directional/Virtual Fence Line Detection, Entry/Exit, (Dis)appearance, Audio Detection, Motion Detection, Sound Classification, Shock Detection, Temperature Change Detection
- 2-way bi-directional audio and alarm I/O support
- SD/SDHC/SDXC memory slot (maximum 256 GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
| Brochure | Download |
Video
Specifications
Product
| Model number | TNO-4051T |
| GTIN code | 8801089118479 |
| Brand | Hanwha |
| Category |
IP Cameras
Thermal
|
| HS Code |
852589
|
| Weight |
2452 grams
|
| Size (lxwxh) |
490
x 290 x 240 millimeters
|
|
Basic Functionality
|
Local Storage
|
|
Hanwha Series
|
Wisenet T
|
|
Angle of View
|
11° -30°
|
|
Encoding
|
H264
H265
MJPEG
|
|
Thermal camera properties
|
Bullet
≥ 30 fps
|
