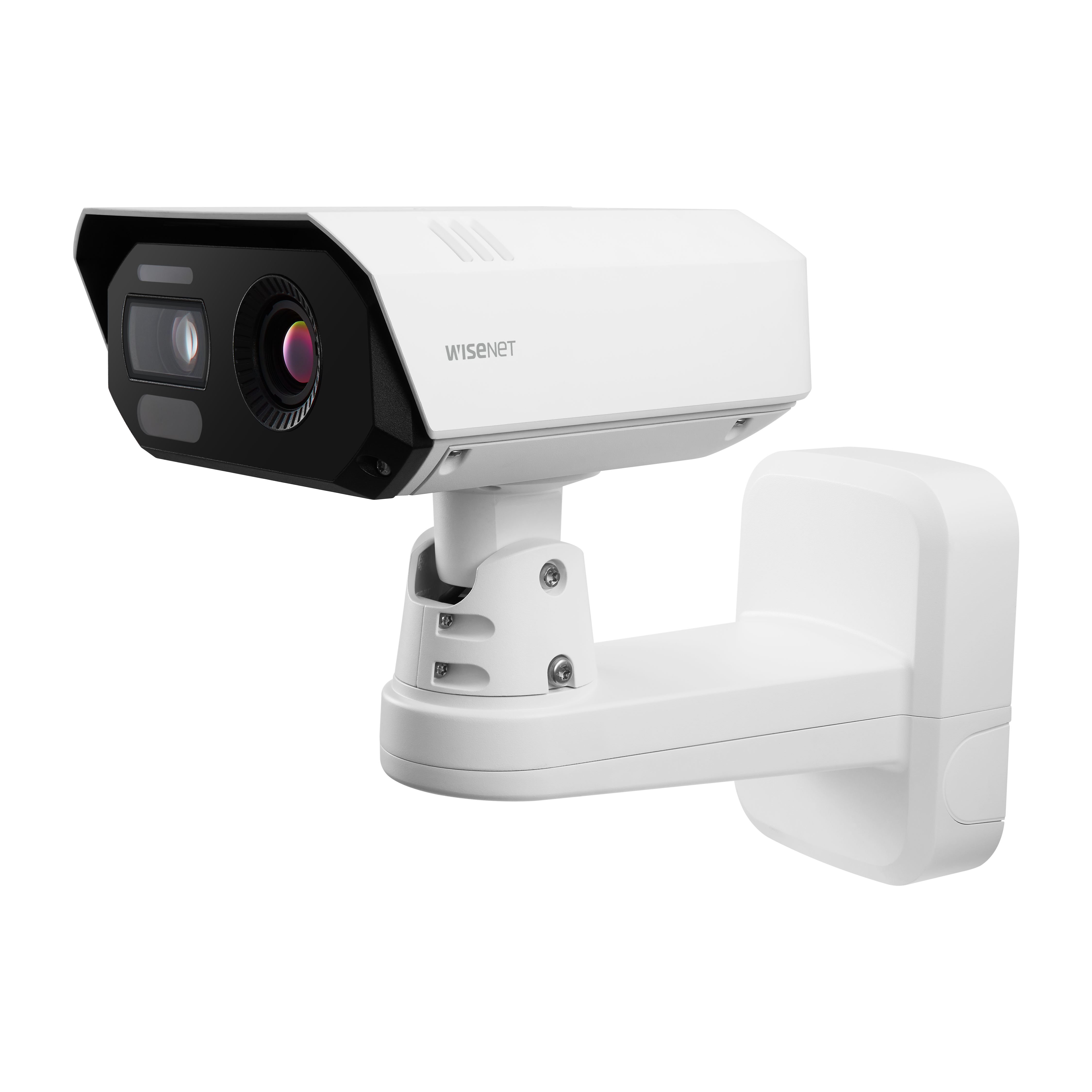

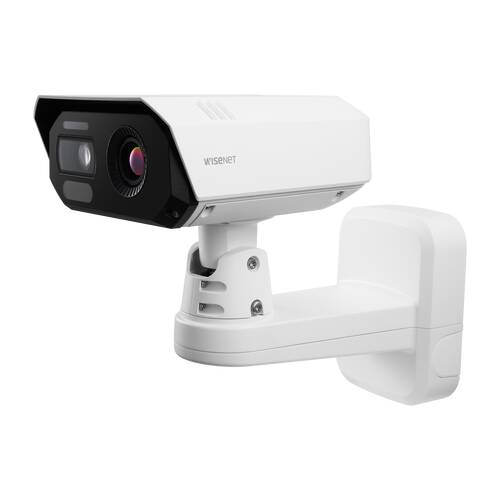

Hanwha TNM-C4940TD
Hanwha
Article code TNM-C4940TD
{{ fullProductName }}
Bi-spectrum AI Thermal Camera
- Thermal: 9.1mm fixed focal lens
- Thermal: H: 50°/ V: 37°/ D: 63.8°
- Visible: 4.4 ~ 9.3mm (2.2x) motorized varifocal
- Visible: Colour: 0.06Lux, BW: 0Lux (IR LED on)
Description Hanwha TNM-C4940TD
- Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
- Built-in 9.1mm fixed lens (FoV: 50° thermal) & 4.4~9.3mm motorized varifocal lens (FoV: 112.1°~47.5° visible)
- Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)
- WDR 120dB, IR viewable length 30m (98ft)
- Features Based on AI engine: WiseNR II, Wise Stream III (visible only), Analytics events based on AI engine (visible only): Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam
- FIPS 140-2
- 2x micro SD card (512GB x2)
- IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
- PoE+/12VDC
- Wall & Pole mount all-in-one design
Video
Specifications
Product
| Model number | TNM-C4940TD |
| GTIN code | 8801089217608 |
| Brand | Hanwha |
| Category |
IP Cameras
Thermal
|
| HS Code |
852589
|
| Weight |
4533 grams
|
| Size (lxwxh) |
380
x 460 x 293 millimeters
|
|
Camera Properties
|
Outdoor
Built-in infrared
|
|
Basic Functionality
|
Day and night
Local Storage
Body temperature
|
|
Hanwha Series
|
Wisenet T
|
|
Optical zoom
|
1-10x
|
|
Encoding
|
H264
H265
MJPEG
|
