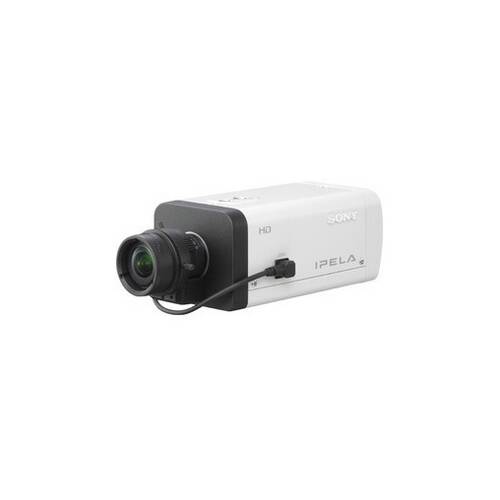

Sony SNC-CH220

The SNC-CH220 is an indoor camera: with a high definition (1080p, supporting H.264 at 30fps) 3 Megapixel image, optical day / night functionality, IR illumination, DEPA intelligent video motion detection and is ONVIF compliant. The camera supports dual streaming, e-PTZ and triple codec encoding. Sonys Exmor CMOS sensor offers excellent images and event detection for the effective gathering of evidence.

Sonys E-Series cameras have excellent image quality and a spectrum of features at an affordable price.

The camera comes with the full Prime Support package for the period of 1 year. This means convenience, quick repairs and support when technical advice is needed. In the event of a defect, a replacement product is delivered in advance with a target time of one working day. An additional 3 years of Prime Support is available as an option.

Camera

Image device 1 / 2.8 type of progressive scan "Exmor" CMOS sensor

Minimum illumination 0.70lx (Color), 0.45lx (BW) (F1.2 / AGC 42dB / 50IRE [IP])

Number of effective pixels (H x V) Approx. 3.27 Megapixel (2096 × 1561)

Electronic shutter speed 1 s to 1/10000 s

Gain control Auto

Exposure control Auto, EV Compensation, Auto Slow Shutter

White balance mode Auto (ATW, ATW-PRO), Preset, One-push WB, Manual

Lens type CS Mount Vari-focal lens

Zoom ratio Optical 2.1X

Horizontal viewing angle 101.2 degrees to 47.0 degrees

Focal length f = 2.8 mm to 6.0 mm

F-number F1.3 (Wide), F1.9 (Tele)

Minimum object distance 300 mm

Powered focus Yes (Easy Focus)

Camera Features

Day / Night * 1 Yes

Noise reduction Yes


Codec image size (H x V) 1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800, 1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG -4, JPEG)

Video compression format H.264, MPEG-4, JPEG

Codec streaming capability Dual streaming

Maximum frame rate H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)

MPEG-4: 15 fps (1920 x 1440) / 20 fps (1920 x 1080)

JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS, NTP, RTP / RTCP, RTSP, SNMP (MIB-2)

ONVIF conformance Yes

Number of clients 5

Authentication IEEE802.1X

Analog Video Output
