Mobotix Mx-VD1A-4-IR-D
Mobotix
Article code Mx-VD1A-4-IR-D
{{ fullProductName }}
End-of-life: Product might no longer be available
MOBOTIX MOVE VandalBullet VB1A-4-IR-D TELE
Successor
Would you like personal advice on alternatives?
Description Mobotix Mx-VD1A-4-IR-D

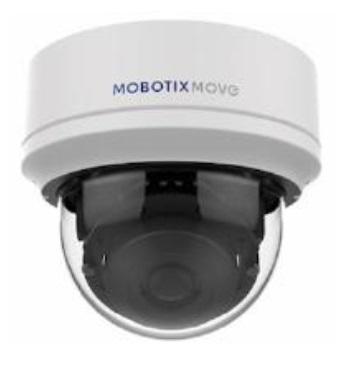

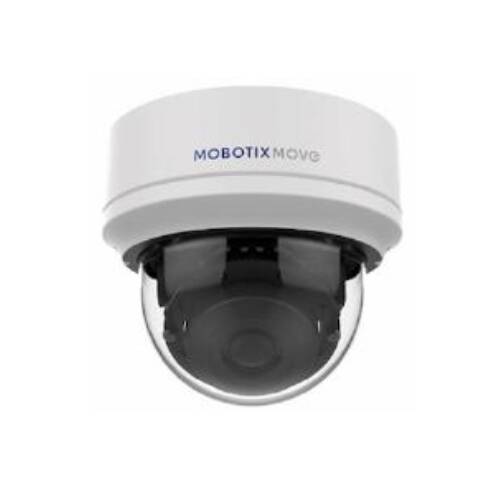

- MOBOTIX MOVE VandalDome Network Camera VD-4-IR-D
- Weatherproof ONVIF S / G dome camera with integrated IR LEDs (up to 40 m) for day and night operation • Image sensor: 4MP (2688 x 1512), 1/3" Progressive CMOS • Automatic changeover from color to B / W image (mechanical IR cut filter)
- Remote Zoom
- Motor-controlled Varifocal lens (F1.6: 9 to 22 mm, viewing angle H: 35 °-15 °, V: 20 °-9 °) with Auto Iris with automatic adaptation to changing light situations
- IP66, IK10
- Ambient temperature -30 to 60°C, humidity 10 to 90% • Video codecs: H.264, MJPEG (up to 3 streams simultaneously )
- WDR (120 dB)
- Max. Frame rate: 4MP @ 30B / s (H.264); MJPEG: 1080p @ 30 B / s
- Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W
- Warranty: 2 years
Downloads
| Datasheet | Download |
| User manual | Download |
| Installation manual | Download |
| Product dimensions | Download |
Specifications
Product
| Model number | Mx-VD1A-4-IR-D |
| GTIN code | 4047438034371 |
| Brand | Mobotix |
| Category |
IP Cameras
Dome
|
|
Camera Properties
|
Outdoor
Built-in infrared
Vandal resistant
|
|
Basic Functionality
|
Day and night
|
|
Resolution
|
4MP
|
|
Mobotix Series
|
Move
|
|
Power over Ethernet
|
15W
|
|
Angle of View
|
11° -30°
|
|
Encoding
|
H264
|
