Mobotix Mx-VB3A-2-IR-VA

Mobotix Article code Mx-VB3A-2-IR-VA

NetcamCenter {{ fullProductName }}

MOBOTIX MOVE Vandal Bullet VB3-2-IR-VA (Video Analytics)
In stock
Buy now
+ Quote
  • High Standard For Any Scenario
  • 2MP, IR up to 40m, Day-Night-Camera
  • Angle of view 99°-31°

Description Mobotix Mx-VB3A-2-IR-VA

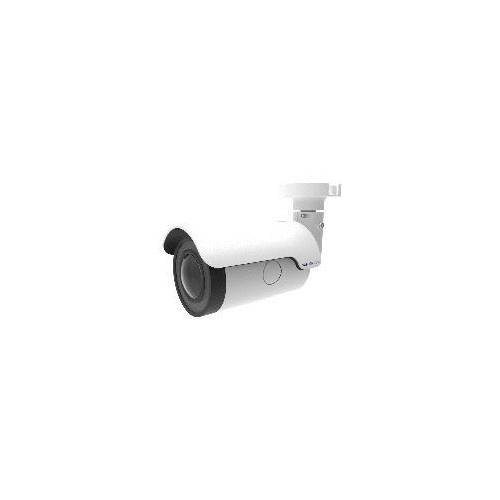

MOBOTIX MOVE Vandal Bullet Network Camera VB3-2-IR-VA (Video Analytics)

Key Features:

  • Weatherproof ONVIF S / G / T bullet camera with integrated IR LEDs (up to 40 m) for day and night operation
  • Max. Image Resolution: 2MP (1920 x 1080), 1/2.7" Progressive CMOS
  • Automatic changeover from color to B / W image (mechanical IR cut filter)
  • Remote Zoom
  • Motor-controlled Varifocal lens (F1.6-F2.9: 2.7 to 12 mm, viewing angle H: 99°-31 °, V: 53 °-18 °) with Auto Iris with automatic adaptation to changing light situations
  • 3-axis lens adjustment
  • IP67, IK10
  • Ambient temperature -55 to 60°C, (heater on) humidity 10 to 90% non-condensing
  • Video codecs: H.264, H.265, MJPEG (up to 4 video-streams simultaneously )
  • True WDR (130 dB)
  • Max. Frame rate:: H.265 / H.264: 1920x1080 @ 30 fps + 720x480 @ 30 fps; MJPEG: 1080p @ 30 fps
  • Power supply: PoE IEEE 802.3af or DC 12V (13W) or AC 24V; max 14 W
  • Hardened and "self-cleaning" anti-reflex Bullet front glass coating by MOBOTIX EverClear
  • MTBF: 95.000h
  • Warranty: 5 years

Downloads

Datasheet Download pdf

Specifications

Product
Model number Mx-VB3A-2-IR-VA
GTIN code 4047438040440
Brand Mobotix
Category
IP Cameras
Bullet
HS Code
852589
Country of origin
Germany
Weight
1460 grams
Size (lxwxh)
296 x 200 x 175 millimeters
Camera Properties
Outdoor
Built-in infrared
Vandal resistant
Basic Functionality
Day and night
Resolution
1080p (2MP)
Mobotix Series
Move
Power over Ethernet
15W
Angle of View
91° - 100°
Optical zoom
1-10x
Encoding
H264
H265
MJPEG
