Mobotix Mx-S74TA-B336R150-EN54

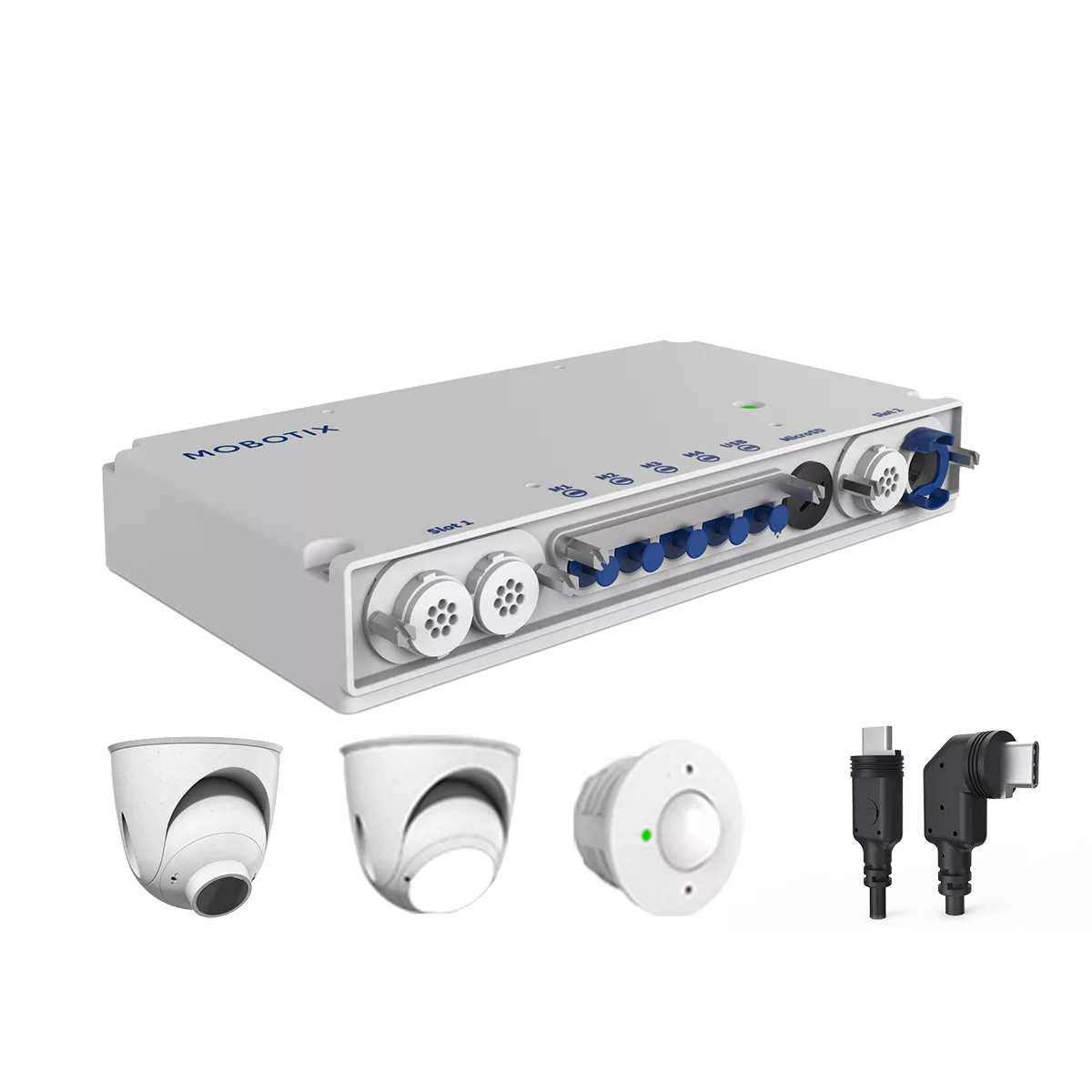

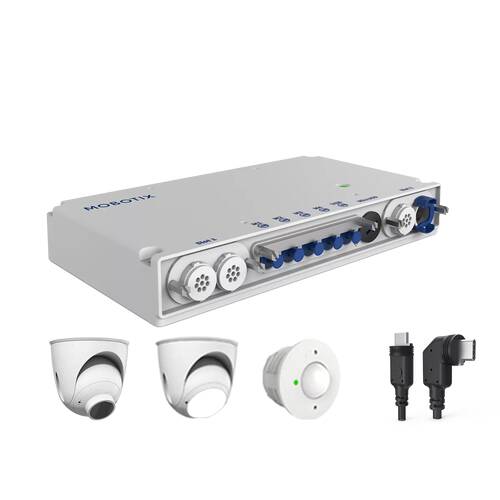

Bundle contains a S74 camera body with network slide-in board, fixed PTMount with CIF thermal sensor and a multisensor with PTMount. Both PTMounts have 3 meter sensor cables to connect to the S74.

• EN54 bundle
• S74A IP camera module (body) for connecting up to two additional functional and optical sensor modules (to be ordered individually)
• ONVIF-S/T-compliant MOBOTIX 7 system platform with H.264/H.265 (Triple Streaming), MxPEG+ and M-JPEG
• CIF Thermal sensor (336x256 Pixel), with Thermal Radiometry, 25° x 19°
• Operating conditions: IP66/IK010 (housing), -40 to 65°C (-40 to 149 °F)
• Internal DVR: 8 GB microSD (for MxPEG+ recordings)
• Max. Power consumption: 25W, supply via network cable, PoE Class 4 (IEEE 802.3af/at)
• Connections: 1x RJ45 jack for weatherproof network connection via MOBOTIX patch cable (Ethernet 1000BaseT), 2x MOBOTIX module connection (1x optical/1x functional), USB-C, further connections via interface board
• Housing: Aluminium, PBT-30GF
• Color: white
• Warranty: 5 years (optionally extendable up to 8 years)
• Bundle content: Mx-S74A, Mx-F-S7A-RJ45-VDC, Mx-O-M7SB-336RP100, Mx-F-MSA, Mx-M-PTMA, 2xMx-A-S7A-CBL03-AN
