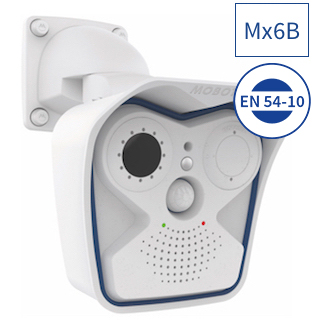

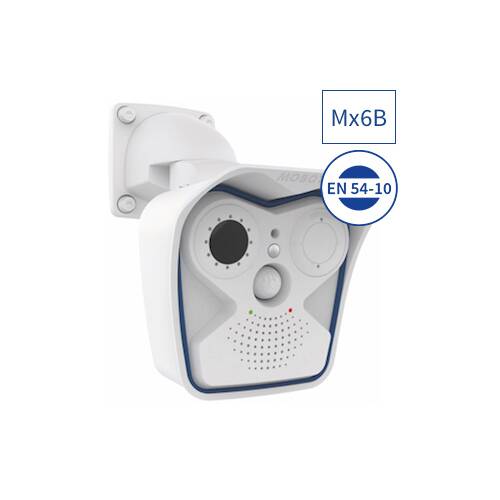

Mobotix Mx-M16TB-R079-EN54-V2

The intelligent video system with integrated high-performance thermal imaging sensor uses all the advantages of the M16B Thermal TR camera design. Thanks to the two lenses arranged directly next to each other, a thermal overlay function with image overlay (thermal and optical) is also possible in order to precisely locate hotspots such as smoldering fires in the visible image. The MOBOTIX TR cameras have a calibrated thermal imaging sensor. By measuring the thermal radiation across the entire image area, an event can be triggered when an individually adjustable trigger threshold is exceeded or undershot (camera alarm, network message, activation of a signal output, etc.).

Key features:

EN54-V2 bundle including EN54-compliant standard configuration, MX-OPT-RS1-EXT RS232 module + MX-Overvoltage-Protection-Box-LSA + MX-OPT-NPA1-EXT PoE Outdoor Box

• IP thermal imaging camera TR with germanium lens: B079 equivalent, horizontal/vertical angle of view 45°/35°
• ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG
• Thermal Radiometry (TR): calibrated thermal imaging sensor for temperature events from -40 to 550 °C
• NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometers, uncooled microbolometer, up to 9 frames/s, 336 x 252 pixels (upscaleable to max. 6MP)
• Optional optical 6MP sensor module (can be ordered separately)
• IP66/IK07, -40 to 60 °C
• Internal DVR: 4 GB microSD
• System components: loudspeaker and microphone (in the housing), PIR sensor, temperature sensor, MxActivitySensor, shock sensor
• VarioFlex wall mount (can be expanded with additional ceiling mount MX-DH-M24-SecureFlex and mast mount MX-MH-SecureFlex-ESWS), Ethernet patch cable 0.5 m
• Interfaces: Ethernet 10/100 (RJ45)
• Incl. 1 blind module (MX-SM-Blind-PW)
