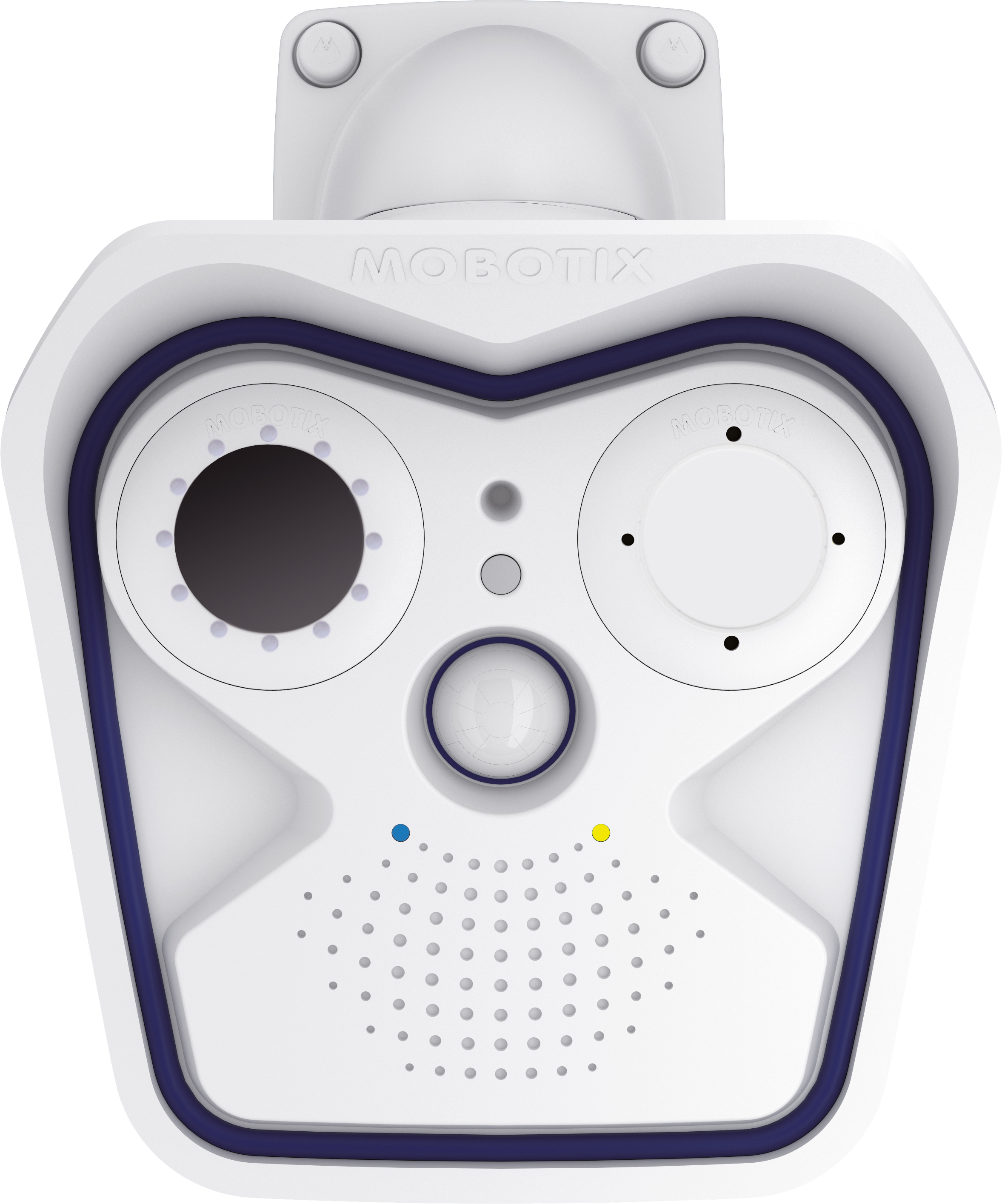

Mobotix MX-M15D-Thermal-L135

Thermal. Dual. Decentralized.

Weatherproof thermographic PoE camera for detection plus a 5 MP sensor module for identification.

The modular design of the M15D system platform ensures maximum flexibility for the MOBOTIX thermographic camera. The M15D-Thermal comes standard with a thermal image sensor and a dummy module.

In addition, it is possible to use any MOBOTIX sensor module (5 MP, color or black-and-white, telephoto hemisphere, with or without long-pass filter / LPF) in the M15D-Thermal for identification. Camera software is then used to activate the dual image on one of the two image sensors (thermal or standard) or both simultaneously.

Inside Outside:

Indoor / Outdoor, weather resistant (IP66), -30 ... + 60 ° C

Sensor module:

17 ° (horizontal angle)

Max image format (Thermal image):

336 x 252 pixel thermal image that can be scaled up by the camera firmware to QXGA format (2048 x 1536 pixels)

Zoom / Pan:

Continuous up to 8x Zoom + Pan / Tilt (digital)

Max frame rate:

9 fps even when the thermal image sensor and (optional) MOBOTIX sensor module are displayed simultaneously

Min. light sensitivity:

NETD type. 50 mK

Interfaces:

Ethernet 10/100 Mbit, miniUSB, MxBus, In / Out and RS232 with accessories

Internal DVR:

Up to 64 GB with microSD card

Audio functions:

Microphone and speaker integrated, lip - synchronous audio, two - way speaker, audio recording

Food:

PoE (IEEE 802.3af / t) PoE - class 3 typ. 5.0 W

Features of the software:

VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, shock detector, notification via e-mail, FTP, telephony (VoIP, SIP), visual / acoustis alarm, pre- and post-alarm images

Activation activation:

365 - day planning multiple events

External storage:

Up to 4 TB on the PC / Server / NAS
