AXIS F91 Hitte bestendige & custom kabels

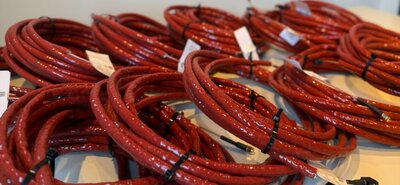

Custom-made heat-resistant cable for Axis F91 modular cameras.
Alternative zu den Axis TU6004-E Kabeln.
Flexibles Kabel, hitzebeständig bis 260 °C im Dauerbetrieb und bis 1200 °C bei kurzzeitiger Belastung.
This cable is available on request in any desired length up to a maximum of 10 metres.
Sleeve It Fire Sleeve is manufactured from ‘E’ glass fibre yarn, which is knitted to form a sleeve and coated with high-grade silicone elastomer rubber.
What is it used for?
Sleeve It Fire is a highly flexible protective sleeve, designed to protect wires, cables and hoses from high ambient temperatures. The sleeve provides continuous protection at an operating temperature of 260 °C and can withstand a splash of molten metal at 1200 °C.
Coax cable
This RG316 coaxial cable has a silver-plated copper-clad steel conductor, PTFE insulation and a silver-plated copper braid with an FEP jacket.
The cable is used in radio-frequency applications, wireless communication and broadcasting equipment, or wherever an extreme temperature range is required.
Complies with the MIL-DTL-17 standard.
- Operating temperature: -65 °C to +150 °C
Fire Sleeve
Sleeve It Fire Sleeve is manufactured from ‘E’ glass fibre yarn, knitted to form a sleeve and coated with high-grade silicone elastomer. It is a highly flexible protective sleeve, designed to protect wires, cables and hoses from high ambient temperatures.
- Continuous operating temperature: 260 °C
- Withstands splashes of molten metal up to 1200 °C
- Inner diameter: 6 mm to 127 mm
Quick Facts
Colour: Red Oxide
Continuous operating temp: 260 °C
Molten splash resistance: Outstanding
Abrasion resistance: Very good
Flexibility: Outstanding
Water and oil resistance: Outstanding
Wall Thickness: 4mm +/ 0.5mm
Average Dielectric Strength: 30Kv +
Industrial Grade
Red oxide silicone coated glass sleeving (Industrial Grade) is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high grade iron oxide silicone elastomer rubber. Red oxide silicone coated glass sleeving possesses outstanding characteristics making it ideal for protecting hose assemblies, cables and wires from high heat sources and occasional flame.
- High flexibility
- Continuous protection at an operating temperature of 260°C
- Ability to withstand a molten metal splash at 1200°C
- Highly resistant to most oils, hydraulic fluids, fuels, acids an alkalis
- When exposed to flame the high grade rubber will form a protective SiO2 layer
- Health & Safety - Provides personnel with protection against burns from hot hoses, steam lines etc.
- Helps to reduce energy loss by retaining heat within pipework.
